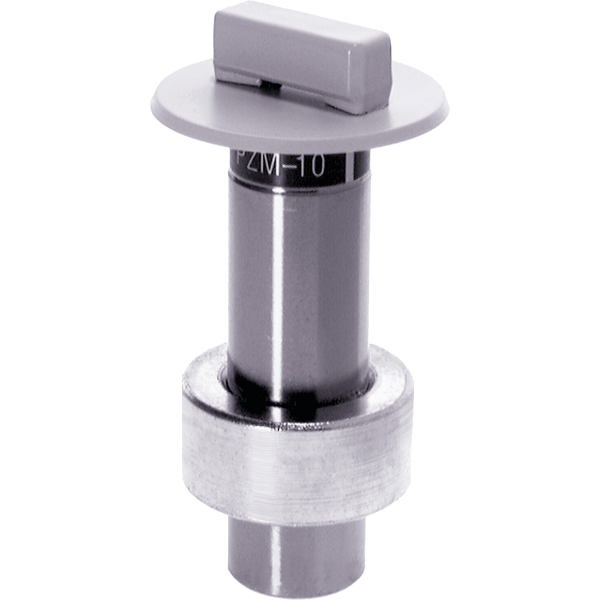

AKG PZM10 LL Professional Flush Mount Boundary Layer Microphone
Description
AKG PZM10 LL Professional Flush Mount Boundary Layer Microphone
The PZM10 LL is a professional-grade boundary microphone engineered for discreet placement in studio control rooms, live tracking spaces, and remote recording setups where a flush-mounted solution preserves acoustic space and aesthetics. Its compact tubular steel housing integrates seamlessly into flat surfaces, while the hemispherical polar pattern captures room ambience naturally and uniformly across the mounting plane—ideal for room-tone recording, ambient bleed capture, and architectural acoustics documentation.
Studio Integration & Placement
This microphone mounts flush into a standard 25/32" diameter hole, allowing seamless integration into control room consoles, studio baffles, isolation booths, or treatment surfaces without visual or acoustic disruption. The electret condenser capsule and solid steel construction deliver reliable performance across long recording sessions, while the balanced line-level output connects via an unterminated pigtail lead for direct integration into mixer inputs or preamp chains.
Recording Characteristics
The PZM10 LL operates across an 80 Hz to 20 kHz frequency response, capturing articulate vocal detail, instrument ambience, and room reflections with minimal noise floor intrusion. An equivalent noise level of 26 dB-A and 68 dB signal-to-noise ratio ensure pristine audio in quiet studio environments, while 2.5 mV/Pa sensitivity and 2000 Ohms recommended load impedance provide straightforward integration into standard preamps and mixing consoles.
Key Features
- Electret condenser capsule technology
- Hemispherical polar pattern for uniform boundary pickup
- Flush-mount design with 25/32" diameter hole requirement
- Tubular steel housing for durability
- Frequency response: 80 Hz to 20 kHz
- Sensitivity: 2.5 mV/Pa
- Equivalent noise level: 26 dB-A
- Signal-to-noise ratio: 68 dB-A
- Recommended load impedance: 2000 Ohms
- Balanced line-level output via unterminated pigtail lead
- Powered by 12 to 24 VDC phantom power
The PZM10 LL remains a trusted choice for permanent studio installations requiring invisible, reliable boundary-layer pickup with professional recording quality.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The PZM10 LL is a professional boundary-layer condenser microphone engineered for studio and location recording of room ambience, group vocals, and acoustic instruments in fixed-position setups. Its 80 Hz–20 kHz frequency response and 68 dB signal-to-noise ratio deliver clean capture with minimal self-noise, while the hemispherical polar pattern naturally balances sound across the pickup surface. Choose it for recording ensembles, room tone, or any session where you need transparent, uniform ambient pickup from a single concealed point.
Frequently Asked Questions
What does flush-mount mean, and how do I install this microphone?
The PZM10 LL sits nearly invisible against flat surfaces by mounting into a standard 25/32-inch diameter hole drilled into a table, lectern, or wall. The tubular steel housing and compact design let it integrate seamlessly into architectural surfaces while the balanced line-level pigtail connects directly to your mixer or audio interface.
What kind of sound does this microphone capture?
Its hemispherical polar pattern captures ambient sound naturally and uniformly across the mounting surface, making it ideal for picking up room tone, group speech, or acoustic instruments without favoring any particular direction. The 80 Hz–20 kHz frequency response and 26 dB-A noise floor deliver clean, detailed audio in quiet environments.
What do I need to power this microphone?
The PZM10 LL requires 12 to 24 VDC phantom power, which is standard on most professional mixers and audio interfaces. It connects via an unterminated pigtail lead with a recommended 2000 Ohms load impedance for reliable integration into balanced audio systems.
Is the PZM10 LL suitable for live sound applications?
Yes—its solid steel construction, discrete installation, and stable hemispherical pickup pattern make it a trusted choice for permanent live-sound setups in theaters, churches, conference venues, and courtrooms where invisible, dependable boundary pickup is required.
