AKG HM1000 High Performance Hanging Module
Description

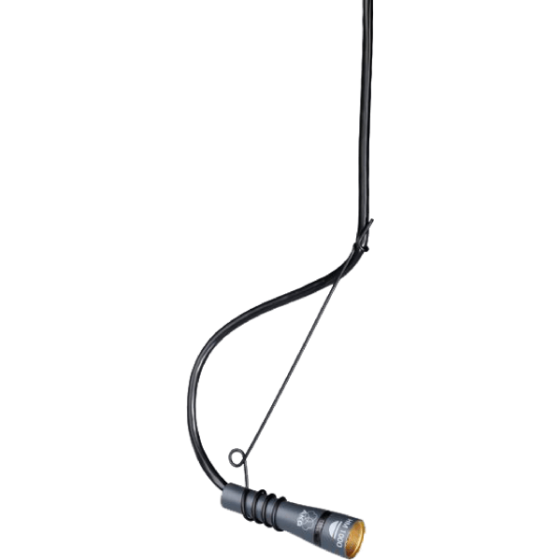

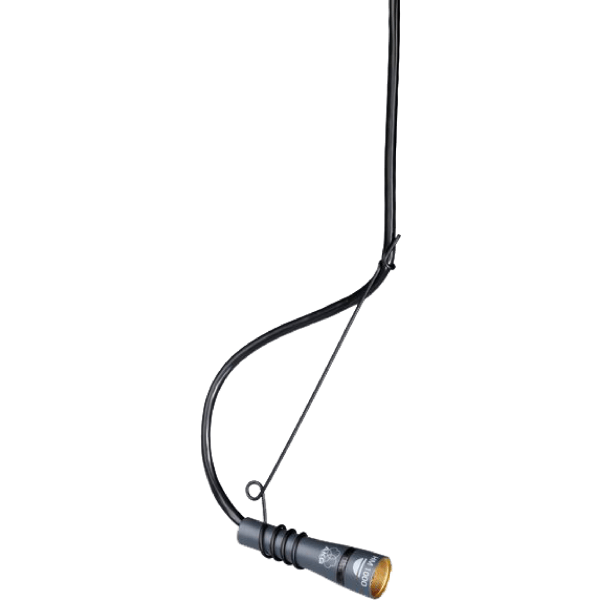

AKG HM1000 High-Performance Hanging Module
The AKG HM1000 is a professional hanging microphone module engineered to capture pristine audio in studio recording, live tracking, and broadcast sessions. Its modular design delivers exceptional flexibility in microphone positioning and tonal character, responding transparently to dynamic sources while maintaining natural, uncolored frequency response across vocals, instruments, and overhead applications. Build your tracking chain around this reliable, accuracy-first system.
Design & Build Quality
Precision engineering defines the HM1000. The spring steel hanging clamp ensures exact microphone alignment for consistent placement across multiple sessions, while the compact form factor—just 50 mm in height and 13.5 mm diameter—fits into tight studio rigging without visual clutter. The matte dark gray finish minimizes reflections in the recording space.
Audio Performance & Connectivity
The module delivers balanced XLR output (3-pin male) with a recommended load impedance of 2000 Ohms, connecting directly to professional mixing consoles and audio interfaces. The integrated 250 Hz bass cut filter removes unwanted low-frequency rumble and proximity handling noise from your recordings, while the switchable LED ring provides real-time monitoring of system status during setup and tracking sessions.
Key Features
- 10-meter specially treated cable designed to resist twisting with temperature variations
- Spring steel hanging clamp for precise microphone alignment and positioning
- Compact dimensions: 50 mm height, 13.5 mm diameter
- Net weight: 400 g
- Matte dark gray finish
- Balanced XLR audio output, male 3-pin connector
- Power interface: 9–52 V, 2 mA
- Recommended load impedance: 2000 Ohms
- Integrated 250 Hz bass cut filter
- Compatible with all DAM Series capsules: CK31, CK32, CK33, CK47, CK80
- Switchable LED ring for system function monitoring
The HM1000 combines robust engineering with capsule modularity, making it a dependable foundation for tracking systems that prioritize accuracy, consistency, and session versatility.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG HM1000 is a professional hanging microphone module engineered for studio, broadcast, and live recording with exceptional transparency and modular capsule compatibility (DAM Series: CK31, CK32, CK33, CK47, CK80). Producers and engineers value its integrated 250 Hz bass cut filter for clean low-end control, balanced XLR output that plays well with any interface or console, and compact form factor that tucks into tight ceiling or overhead positions without visual clutter. Choose it as a versatile, workhorse capture tool when you need accuracy, flexibility, and dependable audio day in and out.
Frequently Asked Questions
What capsules work with the HM1000?
The HM1000 is compatible with all AKG DAM Series capsules: CK31, CK32, CK33, CK47, and CK80, giving you flexibility to swap characters for different sources and applications.
Does it cut low-frequency rumble?
Yes—the integrated 250 Hz bass cut filter automatically reduces low-frequency rumble and handling noise, keeping unwanted subsonic energy out of your mix.
What power and impedance do I need?
The HM1000 accepts 9–52 V phantom power at 2 mA and works best with a recommended load impedance of 2000 Ohms, standard for professional mixing consoles and audio interfaces.
How is it mounted, and what's the cable like?
A precision spring steel hanging clamp locks the module in exact position; it ships with a 10-meter specially treated cable designed to resist twisting as temperature changes, ideal for permanent installs and touring rigs alike.
What are the physical dimensions?
The HM1000 is compact at 50 mm height and 13.5 mm diameter, weighing 400 g, so it integrates cleanly into ceiling or overhead rigging without visual distraction.
