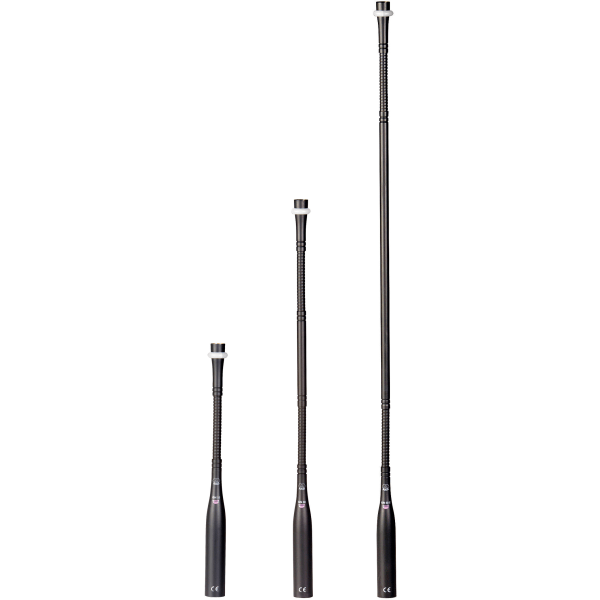

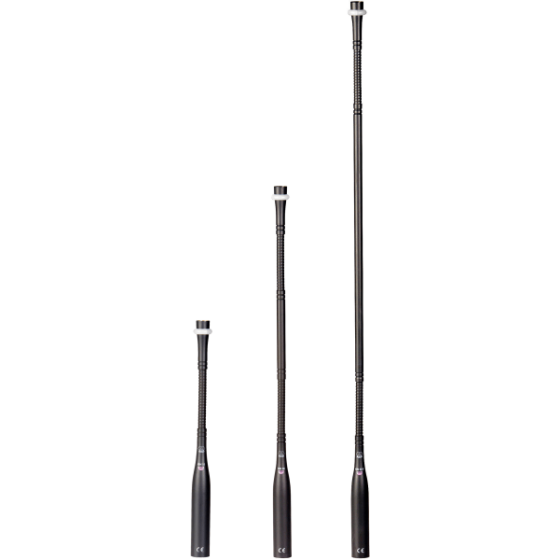

AKG GN50 E 5-Pin High Performance Modular Gooseneck Module
Description
AKG GN50 E 5-Pin High Performance Modular Gooseneck Module
The AKG GN50 E delivers precision-engineered gooseneck flexibility that positions the microphone exactly where you need it for optimal sound capture in the studio. The 5-pin XLR modular connection ensures rock-solid reliability and seamless integration with your mixing chain, allowing you to focus on tracking and capturing performances without signal dropout concerns. This high-performance module responds beautifully across vocals, instruments, and spoken word applications in studio environments, maintaining consistent detail across sessions.
Design & Build
At 1,490 mm (50 cm / 20 inches) in length with a 20 mm diameter, this gooseneck maintains a lightweight yet durable form factor finished in matte dark gray. The in-line detachable XLR phantom power adapter with LED ring and On/Off jumper provides intuitive control and clear feedback in the tracking booth, while the extra-large LED ring offers visual confirmation during setup and multi-take sessions.
Recording Performance
The module spans a 20–20,000 Hz audio frequency bandwidth with an integrated 250 Hz bass roll-off to reduce proximity effect and room rumble, delivering articulate presence that sits cleanly in mixes without muddiness. Operating across a wide 9–52 V power range at 3 mA with a recommended load impedance of 2,000 Ω ensures compatibility with standard audio interfaces, preamps, and mixing consoles in your studio setup.
Key Features
- Five-pin XLR connector for separate audio signal and LED ring control voltage
- Mini 5-pin XLR connector for modular configuration
- Audio frequency bandwidth: 20–20,000 Hz
- Integrated 250 Hz bass roll-off for proximity control
- Recommended load impedance: 2,000 Ω
- Operating voltage: 9–52 V DC at 3 mA
- Length: 1,490 mm (50 cm / 20 inches); Diameter: 20 mm
- Matte dark gray finish
- In-line detachable XLR phantom power adapter with LED ring
- Extra-large LED ring for enhanced stage visibility
- On/Off jumper control
- Compatible with DAM Series capsules: CK31, CK32, CK33, CK47, and CK80
The AKG GN50 E combines professional-grade construction with flexible system integration, delivering consistent studio-quality output for vocal tracking, instrument recording, and podcast production.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG GN50 E is a modular gooseneck microphone module engineered for flexible positioning in recording and voiceover sessions, with a 20–20,000 Hz response and integrated 250 Hz bass roll-off to control proximity effect and low-frequency rumble. The 5-pin XLR connection allows modular swapping of AKG capsules (CK31, CK32, CK33, CK47, CK80), and the detachable in-line phantom power adapter with LED control keeps your recording chain clean and intuitive. Use this when you need to fine-tune mic placement for vocals, instruments, or dialogue without breaking down your rig.
Frequently Asked Questions
What capsules work with the GN50 E?
The GN50 E is compatible with AKG DAM Series capsules: CK31, CK32, CK33, CK47, and CK80. The modular 5-pin XLR connection allows you to swap capsules to match your voice, instrument, or application.
How does the bass roll-off help on stage?
The integrated 250 Hz bass roll-off reduces proximity effect and stage rumble, delivering articulate presence that cuts through without harshness. This keeps your tone clean whether you're up close to the mic or moving around.
What power systems is this compatible with?
The GN50 E operates across 9–52 V DC at 3 mA with a recommended load impedance of 2,000 Ω, making it compatible with standard mixing consoles, wireless systems, and broadcast installations.
What's included with the module?
The package includes the 50 cm gooseneck module, an in-line detachable XLR phantom power adapter with LED ring control, and an On/Off jumper for intuitive stage control. The extra-large LED ring provides visibility in any lighting condition.
How long is the gooseneck?
The GN50 E is 1,490 mm (50 cm or 20 inches) in length with a 20 mm diameter, giving you precise positioning flexibility while remaining lightweight and durable with a matte dark gray finish.
