AKG GN30 ESP High Performance Modular Gooseneck Modules
Description

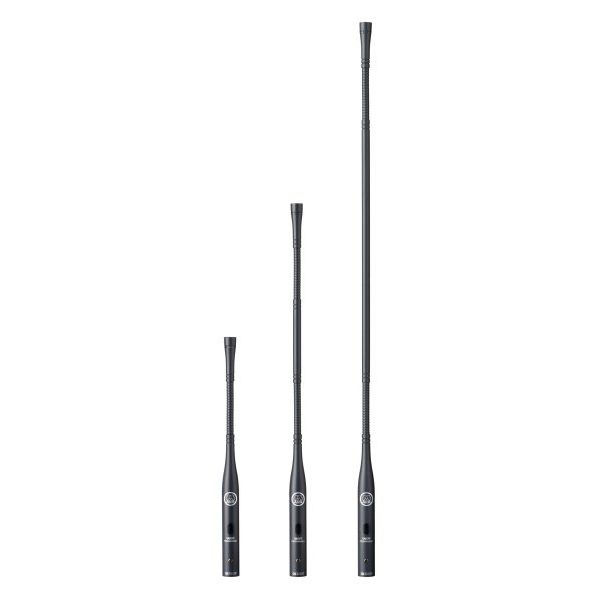

AKG GN30 ESP High Performance Modular Gooseneck Modules
The AKG GN30 ESP captures vocal performances with professional clarity and a flexible gooseneck design that positions the capsule exactly where you need it for optimal proximity and feedback rejection. These modular components respond to every nuance with smooth, detailed character while maintaining excellent rejection of room reflections and ambient noise in studio and live recording environments. The system's modular architecture adapts to your evolving production needs, making it a solid investment for serious vocal recording work.
Design & Build
Built with a compact 20 mm diameter and 10.2-inch length, the gooseneck design provides precise positioning control without bulk or handling noise. The matte dark gray finish maintains a professional appearance while the modular architecture supports DAM Series capsules including CK31, CK32, CK33, CK47, and CK80 for system flexibility and session versatility.
Recording Performance & Signal Chain
These modules deliver 20 Hz to 20 kHz frequency response with balanced XLR output (3-pin XLR male connector) and 2,000 Ohm recommended load impedance for clean signal transmission through your interface or preamp. High RF immunity and an integrated bass roll-off filter switch give you control over proximity effect and environmental noise during tracking, preserving vocal articulation and mix-ready clarity.
Key Features
- Diameter: 20 mm
- Length: 10.2 inches
- Matte dark gray finish
- Frequency response: 20 Hz – 20,000 Hz
- Balanced XLR output with 3-pin XLR male connector
- Recommended load impedance: 2,000 Ohms
- Operating voltage: 9 to 52 V (phantom power compatible)
- Current draw: 3.5 mA
- Compatible with DAM Series capsules: CK31, CK32, CK33, CK47, CK80
- Programmable mute switch functions: on/off, push-to-talk, push-to-mute
- LED ring for MIC ON/OFF indication
- High immunity to radio-frequency interference
- Integrated bass roll-off filter switch
The AKG GN30 ESP combines modular versatility with professional audio performance, delivering the reliability and tonal control that recording vocalists and studio engineers demand.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG GN30 ESP is a modular gooseneck module designed for professional vocal recording and mixing, offering full 20 Hz–20 kHz frequency response and swappable DAM Series capsules to shape tone during tracking and overdubs. Its 10.2-inch gooseneck allows exact mic placement for optimal proximity and rejection of room noise, while phantom-powered operation and integrated bass roll-off give you real-time control in the tracking booth. Perfect for home and commercial studios that want pro-grade vocal capture without committing to a single fixed capsule character.
Frequently Asked Questions
What capsules work with the GN30 ESP module?
The GN30 ESP is compatible with AKG DAM Series capsules: CK31, CK32, CK33, CK47, and CK80. You can swap capsules to change the microphone's tonal character and frequency response without replacing the entire gooseneck assembly.
Does this microphone require phantom power?
Yes, the GN30 ESP operates on 9 to 52 V phantom power and draws 3.5 mA of current. Any standard audio interface, preamp, or mixer with phantom power will support it.
How does the gooseneck design help with live vocals and recording?
The 20 mm diameter, 10.2-inch gooseneck lets you position the capsule precisely for optimal proximity to the source, which improves feedback rejection and reduces handling noise. The integrated bass roll-off filter switch also lets you tame proximity effect and environmental rumble on the fly.
What output connector does it use?
The GN30 ESP features a balanced 3-pin XLR male connector with 2,000 Ohm recommended load impedance for clean signal transmission to your mixer, preamp, or interface.
What special features help in noisy environments?
High RF (radio-frequency) immunity protects against wireless interference, while the integrated bass roll-off filter and programmable mute switch (on/off, push-to-talk, push-to-mute modes) give you control over unwanted noise and signal routing in live and studio settings.
