AKG DPTTetrad Digital Pocket Transmitter
Description

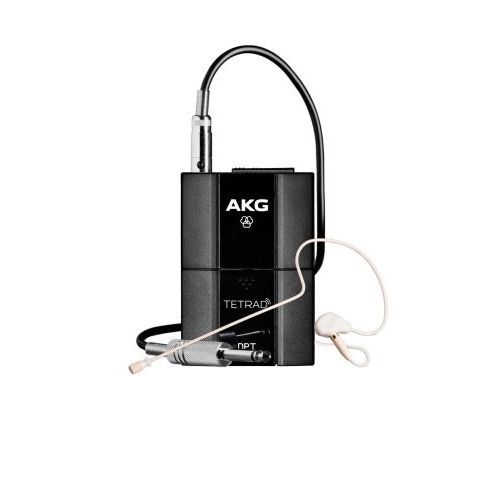

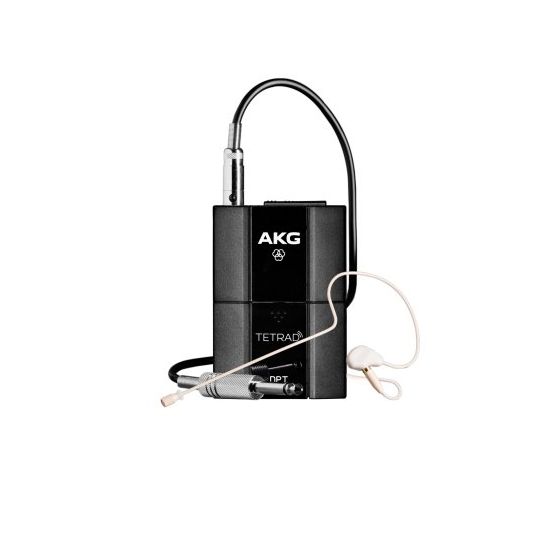

AKG DPTTetrad Digital Pocket Transmitter
The DPTTetrad is a compact, lightweight body-pack transmitter engineered for professional wireless applications where license-free operation and studio-quality audio are non-negotiable. Its pocket-sized form factor—measuring just 92 mm × 64 mm × 22 mm and weighing 70 g—integrates seamlessly into home-studio setups, mobile recording rigs, and remote tracking sessions while delivering the signal integrity demanded by high-fidelity production work and secure audio capture.
Audio Performance & Transmission
24-bit 48kHz uncompressed audio coding ensures studio-quality signal transmission without lossy compression, preserving the full frequency spectrum and transient detail critical to mix-ready recordings. 120 dB-A signal-to-noise ratio maintains clarity across demanding tracking and overdub applications. 128-bit AES standard encryption protects the audio signal from interception, making the unit suitable for confidential session work and secure production environments; linear frequency response and fully adjustable mic-to-line input (0 dB to 30 dB gain control, max input 3 Vrms) accommodate everything from delicate condenser microphone signals to high-output instruments without noise or distortion, giving engineers precise gain staging for optimal recording levels.
Connectivity & Power Management
The transmitter operates on 2.4 GHz license-free technology with 10 mW RF output in Europe and 100 mW outside Europe, supported by a 3-pin TQG connector for reliable signal routing into studio interfaces and mixing consoles. Battery flexibility—either two LR6 AA alkaline cells (6-hour runtime) or two HR6 AA NiMH rechargeable cells (7-hour runtime)—enables extended session tracking or rapid recharge cycles between back-to-back recording blocks.
Key Features
- 24-bit 48kHz uncompressed audio transmission
- 120 dB-A signal-to-noise ratio
- 128-bit AES standard encryption
- Linear frequency response
- Fully adjustable mic-to-line level input (0 dB to 30 dB gain)
- 3-pin TQG connector
- 2.4 GHz license-free operation
- 10 mW EU / 100 mW non-EU RF output
- Digital diversity and out-of-range warning function
- Dual battery compatibility: LR6 alkaline or HR6 NiMH
- Belt clip (upside/down mounting)
- Auto power-off, low battery warning, integrated screwdriver for gain adjustment
The DPTTetrad delivers professional-grade wireless transmission in a portable, secure package suitable for studio recording, overdubs, and remote sessions where audio fidelity and signal protection cannot be compromised.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The AKG DPTTetrad is a professional wireless body-pack transmitter built to capture and transmit studio-quality audio at 24-bit 48 kHz with zero compression, ideal for remote recording, podcast capture, and multi-track session work where signal integrity and security matter. Its linear frequency response, low 120 dB-A noise floor, and fully adjustable mic-to-line input make it equally at home with delicate condenser mics and high-output sources, while 128-bit AES encryption and license-free 2.4 GHz operation keep your sessions both clean and confidential. Choose it for transparent wireless audio that sits perfectly in a mix without the coloration or artifacts of compressed transmission.
Who This Is For
Great for
- ✓ Live Performance
- ✓ Presentations
- ✓ Studio Sessions
- ✓ Touring
Not the best pick for
- – Home Recording on a budget
- – Practice
Frequently Asked Questions
What kind of runtime can I expect from a full battery charge?
With two LR6 alkaline AA cells, the DPTTetrad runs for 6 hours; using rechargeable HR6 AA NiMH batteries extends runtime to 7 hours. Both battery types are supported without any configuration changes.
Does this transmitter work with standard microphones, or does it require special equipment?
The DPTTetrad accepts any microphone via its 3-pin TQG connector and includes a fully adjustable mic-to-line input with 0 dB to 30 dB gain control, accommodating everything from low-output condensers to high-output instruments without distortion.
Is the audio transmission compressed, and does it support encrypted operation?
No—the DPTTetrad uses 24-bit 48 kHz uncompressed audio coding for studio-quality signal integrity. It also includes 128-bit AES standard encryption to protect your audio signal from interception, making it suitable for confidential sessions and secure installations.
What is the maximum transmission range and will it work in my region?
The DPTTetrad operates on 2.4 GHz license-free technology with 10 mW RF output in Europe and 100 mW in all other regions. Actual range depends on your receiving system and venue acoustics; the unit includes digital diversity and out-of-range warning functions.
How does the DPTTetrad compare to other professional wireless transmitters like the Shure ULXD1 or Sennheiser EW-D SK?
The DPTTetrad competes directly with those models in professional touring and studio environments, offering uncompressed 24-bit transmission, low noise floor, and AES encryption in a compact form factor. Exact feature and workflow differences depend on your receiver system and specific application requirements.
