AKG CK98 High Performance Short Shotgun Condenser Microphone Capsule
Share
Out of stock
- SKU
- 2439Z00040
Description

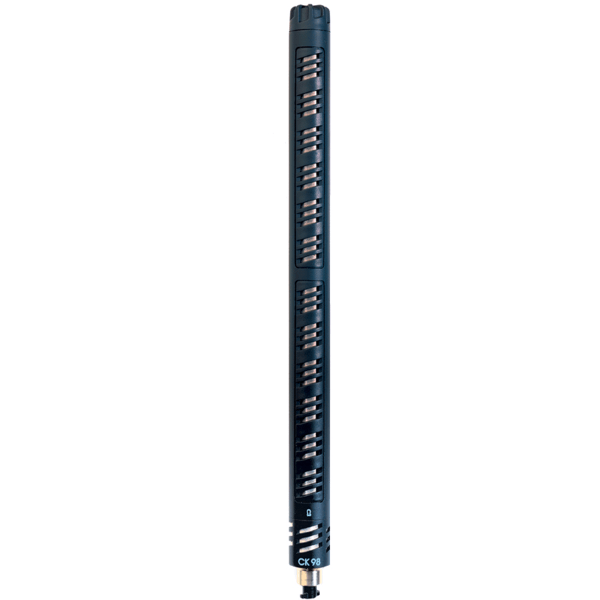

AKG CK98 High Performance Short Shotgun Condenser Microphone Capsule
The AKG CK98 is a compact shotgun condenser capsule engineered for precision directional recording in studio and location sessions. Its lightweight construction and short form factor make it exceptionally easy to position for close-miking applications, while the hypercardioid polar pattern delivers focused sound capture with minimal off-axis coloration. The smooth, presence-peaked frequency response cuts through in any mix, making it equally effective on vocals, acoustic instruments, drum overheads, and detailed instrumental work.
Audio Performance & Specifications
The CK98 operates across a full 20Hz–20kHz frequency range with an equivalent noise level of 17dB-A, ensuring clean, transparent recordings with minimal self-noise. Maximum SPL reaches 124dB for 1% THD, extending to 134dB with 10dB preattenuation—sufficient headroom for capturing everything from intimate vocals to loud acoustic and percussion sources without distortion.
Design & Integration
This is a modular capsule system requiring the SE300 B pre-amp module and Modulock bayonet coupling for secure attachment and easy capsule changes. The compact dimensions of 19mm diameter by 247–262mm length and minimal weight of 80g integrate seamlessly into tight mic arrangements and boom setups. The capsule requires standard 12–48V phantom power, making it compatible with any professional mixing console or interface.
Key Features
- Self-polarized condenser element with combined pressure gradient and interference tube design
- Hypercardioid/directional polar pattern for focused sound isolation
- Frequency response: 20Hz–20kHz
- Equivalent noise level: 17dB-A
- Maximum SPL: 124dB (1% THD) / 134dB (with 10dB preattenuation)
- Compact dimensions: 19mm dia. × 247–262mm length
- Lightweight construction: 80g / 2.8 oz.
- Modulock bayonet coupling for quick capsule changes
- Works exclusively with SE300 B pre-amp module
- Requires 12–48V phantom power
The CK98 delivers articulate, detailed sound capture in a compact package, making it an essential tool for producers and recording engineers demanding professional results from close-miking applications.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG CK98 is a modular shotgun condenser capsule engineered for detailed, directional recording of vocals, drums, and acoustic instruments in home and professional studios. Its hypercardioid pattern and presence-peaked frequency response deliver articulate sound that sits well in mixes, while the 17dB-A equivalent noise floor keeps recordings clean and transparent. Mount it via the included Modulock bayonet to the SE300 B preamp module for quick capsule swaps and versatile close-miking across sessions.
Frequently Asked Questions
What preamp does the CK98 require, and is it included?
The CK98 is a capsule-only module that requires the SE300 B pre-amp module and Modulock bayonet coupling for operation. These are sold separately and provide the interface between the capsule and your mixing console or audio interface.
How loud can this capsule handle before distortion?
The CK98 handles a maximum SPL of 124dB at 1% THD, or 134dB with 10dB preattenuation engaged, giving you plenty of headroom for loud drums, percussion, and brass instruments without clipping.
What makes the hypercardioid pattern useful for recording?
The hypercardioid polar pattern focuses sound capture tightly on the source in front of the mic while rejecting off-axis noise and room reflections, making it ideal for isolating vocals, drums, and instruments in live and studio environments.
Is this capsule compatible with standard phantom power?
Yes, the CK98 requires standard 12–48V phantom power, making it compatible with any professional mixing console, audio interface, or preamp that supplies phantom power.
How small and lightweight is this capsule?
The CK98 measures 19mm in diameter and 247–262mm in length, weighing just 80g (2.8 oz), allowing it to fit into tight boom arrangements and close-miking setups where space is limited.
