AKG APS4 With No Power Supply B-Stock
In stock
Only 1 left
- SKU
- 3296H00010-B
Description

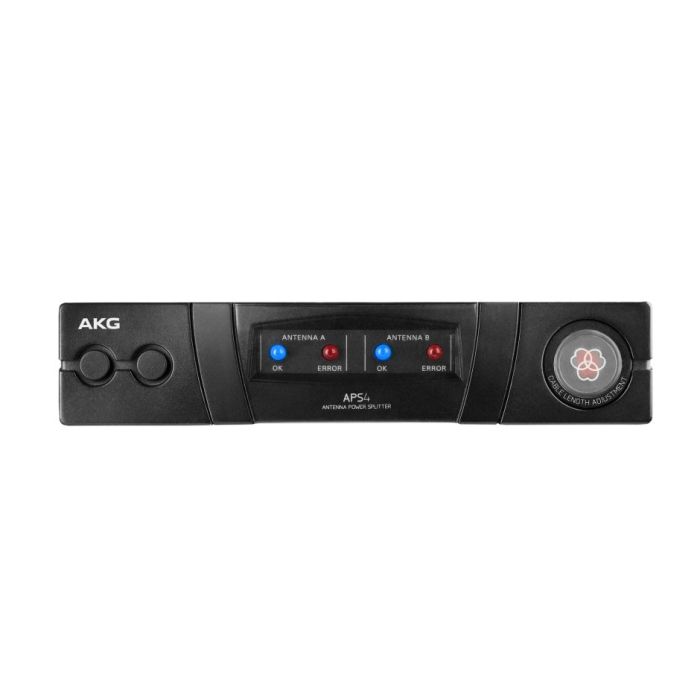

AKG APS4 Active Antenna Power Splitter (No Power Supply)
The AKG APS4 is a professional-grade UHF antenna distribution system built into a compact half-rack metal housing designed for multi-receiver wireless setups. This unit consolidates RF signals from multiple antenna sources and distributes them efficiently across up to four receivers, making it essential infrastructure for expanding wireless microphone capacity in recording sessions, live tracking, and remote broadcast work. The rugged construction and straightforward BNC connectivity provide reliable signal routing for growing studio wireless deployments without RF loss or crosstalk.
Signal Distribution & RF Performance
The APS4 accepts RF input from two independent antenna paths via BNC connectors and distributes that signal across ten RF output BNC sockets, each capable of feeding a separate receiver. Switchable attenuation settings (0, 2, 4, 6, 8, 10, 12, 14 dB) allow precise level matching and prevent overdriving connected receivers, critical when managing multiple wireless units operating simultaneously in tracking rooms or large session spaces. The system operates across the extended 470–952 MHz frequency range, covering UHF wireless microphone bands used worldwide.
Power Management & Expandability
The rear panel antenna inputs supply 10 VDC to power up to three active antenna elements per signal path, eliminating the need for separate antenna power supplies on compatible active antennas. Two additional antenna outputs allow cascading of up to three further APS4 units for multi-room or large-format studio installations. Note that this variant ships without its external 12 VDC power supply, which must be sourced separately.
Key Features
- UHF active antenna and power splitter for up to 4 receivers
- 2 x BNC RF inputs (50 Ohm), 10 x BNC RF outputs (50 Ohm)
- Frequency range: 470 to 952 MHz
- Switchable attenuation: 0, 2, 4, 6, 8, 10, 12, 14 dB
- 10 VDC supply voltage for powering up to three active antenna elements per path
- Two antenna outputs for cascading up to three additional APS4 units
- Rugged half-rack metal housing
- Requires external 12 VDC / 3500 mA power supply (sold separately)
- Includes rack mount kit (RMU4000), two front-mount antenna cables, and ten BNC cables
This APS4 delivers the antenna infrastructure and signal management needed for professional wireless microphone systems operating multiple receivers across studio sessions, location recording, and broadcast environments.
This specific B-Stock unit features a missing power supply, though the APS4 itself is in complete working order. The absence of the power adapter has absolutely zero impact on the device's performance, functionality, or structural integrity once a compatible power supply is obtained. This represents an excellent opportunity to acquire a premium AKG product at a significant B-Stock discount while retaining one-year manufacturer warranty coverage.
More Information
| Condition | Refurbished |
|---|---|
| Country of Manufacture | China |
Reviews
About this B-Stock unit
| Condition | Factory B-Stock direct from the manufacturer: open box, show or demo unit, or a minor cosmetic blemish. Fully tested. |
|---|---|
| Warranty | One-year manufacturer warranty |
| Ships from | The manufacturer's US warehouse, about 2 business days handling, tracking emailed when it leaves |
| Inspected | Photographed and inspected in Temecula, Jul 21, 2026 |
| Price vs new | $154 under the new unit ($770) |
Prefer a brand-new one? AKG APS4 With No Power Supply is in the catalog at $770.
At a Glance
The AKG APS4 is a professional antenna distribution system that cleanly consolidates RF signals and distributes them across multiple wireless receivers in the studio or during sessions. Ideal for producers and engineers running parallel wireless mic chains in tracking rooms or live-session environments, it provides transparent signal routing, precise level control via switchable attenuation, and the ability to power active antenna elements without separate power supplies. Use it to expand your wireless infrastructure while maintaining signal integrity across all receivers.
Who This Is For
| Best suited for | Live Performance, Touring, Studio Sessions |
|---|---|
| Tonal character | Transparent signal distribution, minimal rf degradation, precise level control, multi-receiver stability |
| Less specialized for | Practice, Home Recording (it will do it; instruments voiced for that style do it more easily) |
| Skill level | Professional |
Frequently Asked Questions
What is B-Stock, and why is this unit missing a power supply?
B-Stock means the APS4 is fully functional with minor cosmetic imperfections; in this case, the external 12 VDC power supply is not included. The APS4 itself operates normally once you source a compatible 12 VDC / 3500 mA power supply separately. There is zero impact on performance, functionality, or structural integrity.
How many receivers and antennas can this handle?
The APS4 accepts RF input from two independent antenna paths and distributes the signal across ten BNC RF output sockets, each capable of feeding a separate receiver. It can power up to three active antenna elements per signal path and supports cascading of up to three additional APS4 units for larger multi-zone installations.
What frequencies does it cover, and will it work with my wireless mics?
The APS4 operates across 470–952 MHz, covering all major UHF wireless microphone bands used worldwide. It is compatible with professional wireless systems from AKG, Shure, Audio-Technica, Sennheiser, and other manufacturers using standard BNC connectors in that frequency range.
Can I adjust signal levels to prevent receiver overload?
Yes. Switchable attenuation settings (0, 2, 4, 6, 8, 10, 12, 14 dB) allow precise level matching and prevent overdriving connected receivers, which is essential when managing multiple units in close proximity.
What comes in the box, and what do I need to buy separately?
Included are the APS4 unit, rack mount kit (RMU4000), two front-mount antenna cables, and ten BNC cables. You must source a separate 12 VDC / 3500 mA external power supply to operate the unit.
