Martin MAC One in dual SiP

Martin MAC One in dual SiP

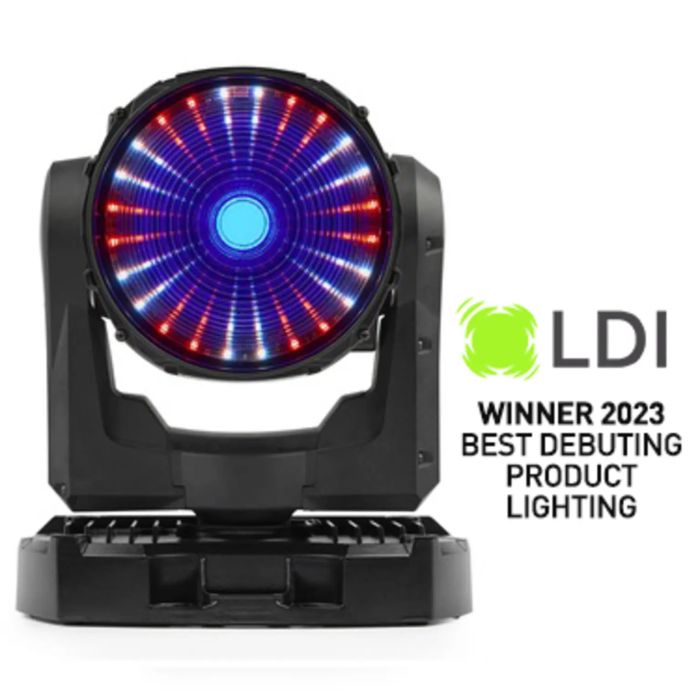

The Martin MAC One is a compact moving light fixture engineered for precision control in studio and production environments. Its lightweight frame and narrow beam characteristics make it responsive and intuitive to rig, while the silent cooling system ensures clean audio capture during recording sessions and live tracking. This dual SiP configuration delivers the output and control density needed for modern studio lighting setups without excessive footprint or power draw.

Optical Performance & Beam Quality

With 2,500 lumens output and 375,000 cd narrow beam intensity, the MAC One delivers punchy, directional light that cuts through ambient studio conditions and sits cleanly in video documentation. The 4–27° zoom range provides flexibility from tight key lighting to broader fill coverage, while the 24 RGB effect LEDs embedded in the lens enable dynamic texture and backlight effects independent of the main beam for layered, sophisticated lighting design.

Engine & Control Architecture

The 120 W custom RGBL LED engine delivers superior color rendering—higher CRI, TM-30, and TLCI values compared to conventional RGBW fixtures—ensuring accurate skin tones and saturated accent lighting in both live recordings and video production. DMX, Art-Net, sACN, and Martin P3 control options integrate seamlessly into existing studio infrastructure, while 200+ built-in FX macros and P3 video mapping support enable sophisticated scene programming and dynamic lighting design without requiring external media servers.

Key Features

• Weight: 4.4 kg (9.7 lbs)
• 2,500 lumens output; 375,000 cd narrow beam intensity
• 120 W custom RGBL LED engine with higher CRI, TM-30, and TLCI
• Zoom range: 4–27°
• 24 RGB effect LEDs for backlight effects
• 200+ built-in FX macros and P3 video mapping
• DMX, Art-Net, sACN, and Martin P3 control
• LED lifetime: >50,000 hours (to >70% luminous output)
• Ultra-quiet cooling: 23 dB(A) in theater and broadcast mode
• Dimensions: 226 mm width (yoke), 336 mm height (head straight), 220 mm depth
• Part number (dual SiP): MAR-90250205HU (ordered in multiples of 2)

The MAC One delivers compact moving light performance with professional color fidelity and low noise—an essential fixture for studio sessions and video work where space, silence, and precise control matter equally.
