JBL Commercial 30 Watt Paging Horn (4 in masterpack) 30W PAGING HORN W
Share
In stock
- SKU
- CSS-H30-B
Description

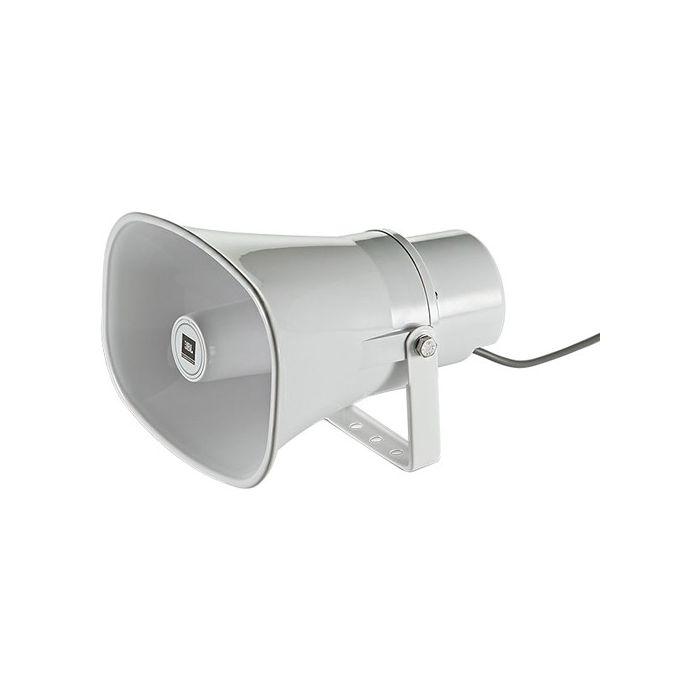

JBL Commercial 30 Watt Paging Horn (4 in masterpack) 30W PAGING HORN W TRANSFORMER
This commercial-grade paging horn operates as a high-output speech reinforcement tool suited to institutional and outdoor recording, monitoring, and playback applications. The stainless steel bracket and phenolic diaphragm driver withstand sustained use in demanding studio and field environments, while the integrated multi-tap transformer provides flexible impedance matching for complex audio systems and multi-zone session setups.
Audio Performance & Output
With a sensitivity rating of 108 dB (1W, 2.83V @ 1m), this horn achieves maximum SPL of 123 dB continuous average (129 dB peak) at 1 kHz–6 kHz, peaking at 127 dB continuous average (133 dB peak) at 1.4 kHz with 30W input on the 8-ohm setting. The 380 Hz–6 kHz frequency response emphasizes vocal clarity and intelligibility in mixes, while the built-in 350 Hz high-pass filter cuts low-end rumble and reduces feedback risk during live recording and playback sessions.
Build & Environmental Durability
Constructed with a phenolic diaphragm driver and stainless steel bracket and hardware, this unit resists corrosion and weathering. The IP-65 rating per IEC529 and salt spray testing per B117 ensure reliable operation in coastal studios, mobile recording rigs, and outdoor recording environments without degradation.
Key Features
- 30W system power rating (120W peak)
- UL-registered multi-tap transformer with 8-ohm direct bypass
- Five 70V impedance taps: 167Ω (30W), 333Ω (15W), 667Ω (7.5W), 1333Ω (3.8W), 2666Ω (1.9W)
- 108 dB sensitivity (1W, 2.83V @ 1m)
- 50° horizontal by 70° vertical coverage pattern
- Built-in passive 350 Hz high-pass filter
- IP-65 weatherproof rating with salt spray resistance
- Phenolic diaphragm driver for durability
- Stainless steel bracket and mounting hardware
- 300 mm (12 in) pigtail with watertight fitting and bare wire termination
- Compact dimensions: 206 × 285 × 287 mm horn; 224 × 285 × 287 mm with bracket
- Lightweight at 4.5 lb (2.0 kg) per unit
This four-pack of commercial paging horns delivers consistent output and long-term reliability for multi-zone facility announcements, evacuation systems, and outdoor mass notification.
More Information
| Condition | Refurbished |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL Commercial 30 Watt Paging Horn is a speech-clarity specialist designed for institutional recording, facility announcements, and outdoor broadcast capture—not music or high-fidelity tracking. Its 380 Hz–6 kHz vocal-focused response and 350 Hz high-pass filter deliver clean, intelligible speech in isolation or multitrack documentary/educational recording workflows. Pair it with a multi-tap transformer for flexible studio-to-field mic placement, or use the IP-65 weatherproof rating for outdoor voice-over and location recording sessions.
Who This Is For
Great for
- ✓ Public Address Systems
- ✓ Emergency/Evacuation Announcements
- ✓ Institutional Facilities
- ✓ Outdoor Mass Notification
Not the best pick for
- – Music Reinforcement
- – Live Concert Sound
- – High-Fidelity Audio
Skill level: Beginner · Intermediate · Advanced · Professional
Frequently Asked Questions
What does B-Stock mean for this paging horn?
B-Stock means this unit is fully functional with minor cosmetic imperfections. It performs identically to new stock and carries the same 30W output, 123 dB SPL, and weatherproof IP-65 rating, so there is no compromise on durability or sound.
Can I use this horn for live music reinforcement or concert sound?
No. This horn is optimized for speech clarity and institutional announcements, not music reproduction. Its 380 Hz–6 kHz frequency response and vocal-focused design make it unsuitable for full-range music or live band reinforcement.
What impedance options does the transformer provide?
The integrated multi-tap transformer offers five 70V impedance taps (167Ω at 30W, 333Ω at 15W, 667Ω at 7.5W, 1333Ω at 3.8W, and 2666Ω at 1.9W) plus an 8-ohm direct bypass, allowing flexible integration into complex PA and paging systems.
How does this horn perform in wet or coastal environments?
It carries an IP-65 weatherproof rating and is salt spray tested per B117, with a stainless steel bracket and phenolic driver that resist corrosion and sustained moisture exposure without degradation.
What is included in this four-pack?
You receive four complete paging horns, each with a 12-inch pigtail termination, watertight fitting, stainless steel mounting bracket, and integrated UL-registered multi-tap transformer for multi-zone facility installations.
