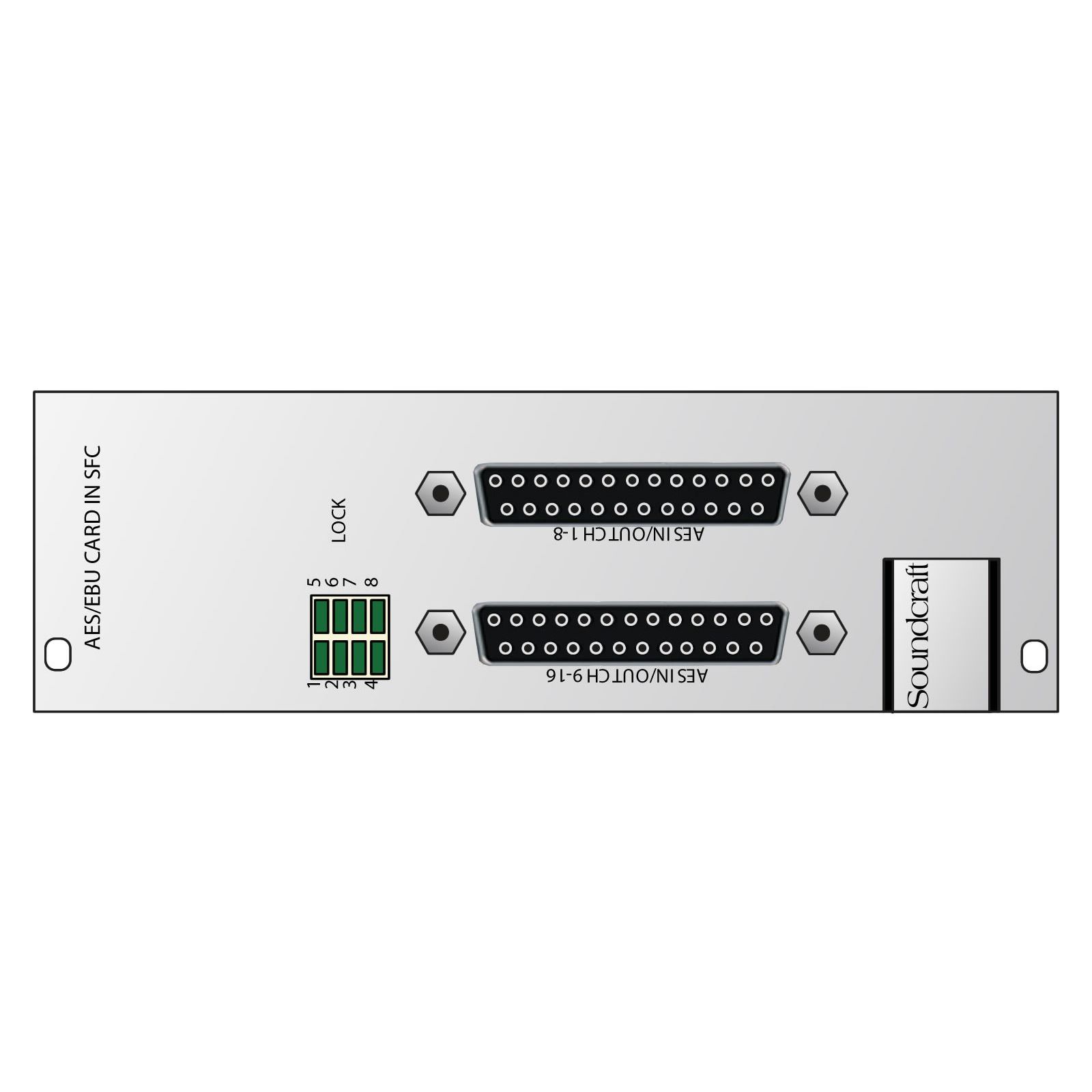

Soundcraft RS2422SP 16 Ch AES/EBU Card
Soundcraft RS2422SP 16 Ch AES/EBU Card
Out of stock
- SKU
- RS2422SP
$1,355.00
Description
A 16 channel digital AES/EBU card for Soundcraft mixers.
AES/EBU input/output card with 16 Ch I/O. With input SFCs only .
Selectable output sampling frequencies:
96 kHz,48 kHz,44.1 kHz,or external reference (22...108 kHz). Input SFCs can be bypassed individually.
Output dither is selectable for every AES/EBU output from 24 bit,20 bit,18 bit or 16 bit. Settings are made with jumpers. Inputs and outputs on standard25-pin D-type connectors (female).
Note: Output SFCs are not fitted on the Vi4/6.
Specifications:
- Input/output impedance 110 O
- Input sensitivity min. 0.2 V
- Output level (into 110 O) 3.3 V
- SFC range 22...108 kHz
- Current consumption (3.3 V) 0.2 A/.0423: 0.4 A/.0424: 0.6 A / (5 V) 0.65 A
- Operating temperature 0...45° C
More Information
| Condition | New |
|---|
