Will this pickup fit my current bass without routing?

Yes, the SSB-4N is a direct mechanical and electrical replacement for EMG 35 or EMG 40 pickups and requires no cavity modification. It installs into existing soapbar routing with its two-conductor cable compatible with passive volume and tone controls.

Is this pickup active or passive, and what does that mean for my tone?

The SSB-4N is passive, producing moderate output with a natural, balanced character that emphasizes low-end body and high-end clarity without an onboard preamp. You can also pair it with Seymour Duncan's optional STC-2 or STC-3 active tone circuits if you want expanded sonic flexibility later.

What kind of tone should I expect compared to a split-coil pickup?

The SSB-4N delivers a punchy midrange with defined note separation and a controlled presence peak—tighter and more articulate than a traditional split-coil, with a ceramic bar magnet construction that avoids both darkness and brittleness. Its EQ profile emphasizes bass body (6) and treble clarity (7) while keeping mids neutral (4), ideal for genres requiring clear note definition.

What is the maximum string spacing, and will it work on my 4-string bass?

The SSB-4N features a full-length dual blade design with a maximum string spacing of 2.70 inches (68.5 mm), sized specifically for 4-string bass applications. It is not recommended for extended-range instruments beyond 4 strings.

Can I use this as a bridge pickup, or just in the neck position?

The SSB-4N is specifically designed as a neck pickup; for a complete pickup set, pair it with a Seymour Duncan SSB-4B bridge pickup to maintain consistent tone across both positions.

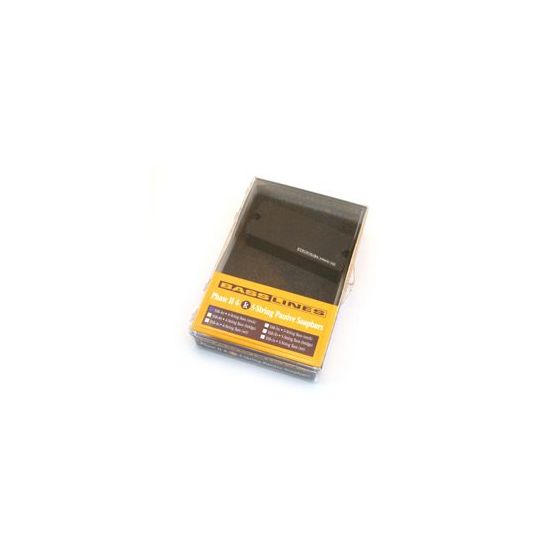

Seymour Duncan SSB-4N Passive Soapbar 4-String Neck Pickup

The SSB-4N delivers a balanced, articulate voice in a compact soapbar format designed for 4-string bass tracking and mixing applications. This passive pickup bridges vintage character with modern soapbar ergonomics, making it an ideal choice for studios adding a versatile neck position without extensive instrument modifications.

Tone & Recording Character

A 6.3 kΩ DC resistance and 9.2 kHz resonant peak produce moderate output with a controlled presence peak that sits well in dense mixes—neither dark nor brittle. The ceramic bar magnet construction contributes to a punchy midrange with defined note separation, complemented by an EQ profile of 6 (Bass) / 4 (Mid) / 7 (Treble) that emphasizes low-end body while maintaining high-end clarity for individual tracking or blended bass tones.

Studio Integration & Workflow

A direct mechanical and electrical replacement for EMG 35 or 40 pickups, the SSB-4N integrates seamlessly into existing cavities without routing or modification, streamlining session prep. The two-conductor cable works with passive volume and tone controls for classic recording character, or pairs with Seymour Duncan's STC-2 (2-band) and STC-3 (3-band) active tone circuits for expanded tonal flexibility across multiple tracking scenarios.

Key Features

DC Resistance: 6.3 kΩ
Resonant Peak: 9.2 kHz
Ceramic bar magnet construction
Two-conductor cable
Full-length dual blade design
Maximum string spacing: 2.70" (68.5mm) for four-string configuration
Passive design with moderate output
Direct EMG 35/40 replacement—no modification required
Compatible with passive controls or STC-2/STC-3 active tone circuits
EQ Profile: 6 Bass / 4 Mid / 7 Treble

The SSB-4N combines straightforward installation with articulate, responsive tone—a practical choice for studios prioritizing quick session setup and consistent voice across neck and bridge positions.

Condition	New
Country of Manufacture	United States
