What does the four-conductor wiring give me?

Four-conductor wiring lets you wire the pickup in multiple configurations—series, parallel, or split—giving you tonal flexibility during recording or live performance. This is especially useful if you want to experiment with blending or phase relationships in the mix.

Is this pickup good for metal or high-gain styles?

No; this pickup is voiced for blues, rock, jazz, and classic hard rock. Its balanced, articulate character is not designed for metal, djent, or thrash metal, where you'd typically want more aggression and output.

How does it compare to original Gibson PAF pickups?

The SH-1n '59 delivers authentic PAF-inspired tone and response using the same Leesona 102 winding machine from the Gibson Kalamazoo factory, but with modern vacuum wax potting for squeal-free, consistent performance. You get the vintage character without the unpredictability of original pickups.

What are the specs I need to know?

DC resistance is 7.43 kΩ with a 6.8 kHz resonant peak, Alnico V bar magnet, 42AWG plain enamel wire, and an EQ curve of 6/3/8 (Bass/Mid/Treble). It's vacuum wax potted to eliminate microphonic noise while preserving high-end detail.

What does zebra finish mean?

Zebra bobbins are a visual distinction—alternating black and cream-colored coil forms—that add aesthetic character. It's purely cosmetic and does not affect tone or performance.

Seymour Duncan SH-1n '59 Zebra

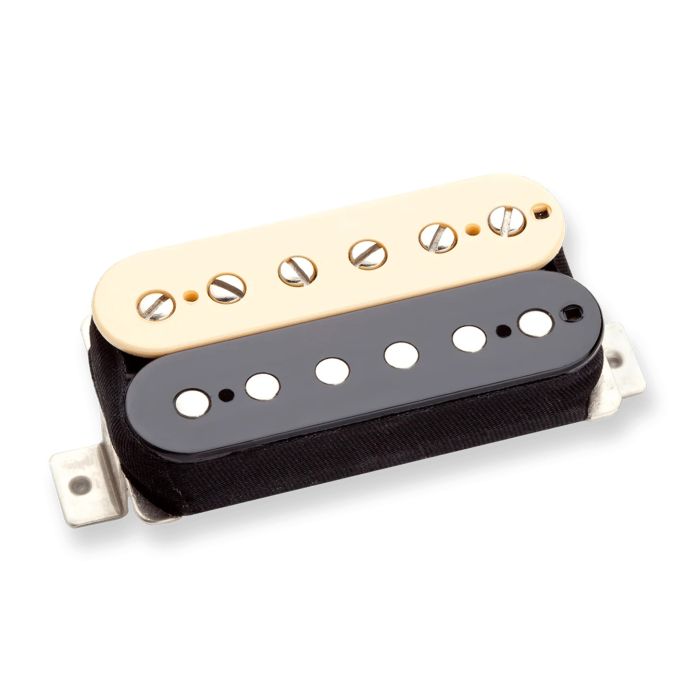

Seymour Duncan SH-1n '59 Model Zebra 4-Conductor Pickup

The SH-1n '59 Model captures the articulate, balanced warmth that defined Gibson's golden era of electric guitar tone. This neck-position humbucker combines vintage character with modern reliability, delivering authentic PAF-inspired response in the studio without the unpredictability of original pickups. The zebra bobbins add visual distinction while the four-conductor wiring provides maximum tonal flexibility for tracking and mixing versatility.

Tone & Recording Character

With a DC resistance of 7.43 kΩ and resonant peak at 6.8 kHz, this pickup delivers clear mids and smooth highs—essential for clean articulation during layered tracking and driven lead recordings. The Alnico V bar magnet and EQ curve of 6/3/8 (Bass/Mid/Treble) yield a naturally balanced output that sits well in any mix without requiring aggressive EQ compensation, speeding up your production workflow.

Construction & Materials

Wound on Seymour Duncan's vintage Leesona 102 machine—the same equipment used in the historic Gibson Kalamazoo factory—this pickup employs 42AWG plain enamel magnet wire and a long-legged nickel-silver bottom plate for authentic tonal response. Vacuum wax potting eliminates microphonic squealing while preserving high-end detail, ensuring clean recordings free of unwanted noise artifacts.

Key Features

DC Resistance: 7.43 kΩ
Resonant Peak: 6.8 kHz
Magnet Type: Alnico V Bar
EQ (Bass/Mid/Treble): 6 / 3 / 8
Wire Gauge: 42AWG plain enamel
Bottom Plate: Long-legged nickel-silver construction
Lead Wire: Vintage single-conductor braided push back
Conductor Configuration: Four-conductor cable
Winding Machine: Leesona 102 (Gibson Kalamazoo factory original)
Potting: Vacuum wax potted for squeal-free performance
Bobbins: Zebra finish

This pickup's combination of authentic vintage specs and proven manufacturing consistency makes it an ideal choice for home studios, session work, and professional recordings requiring neck-position clarity and vintage character.
