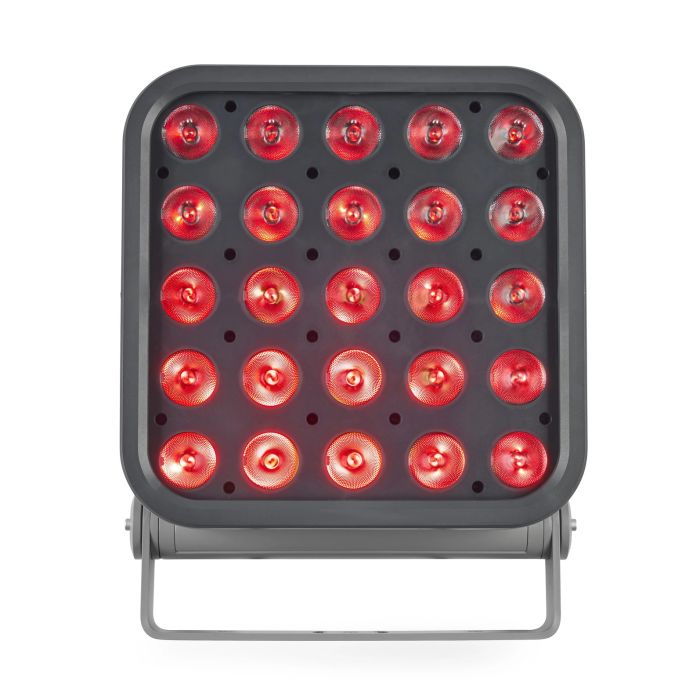

Martin Exterior Wash Pro XL QUAD, EU, White

Martin Exterior Wash Pro XL QUAD, EU, White

The Martin Exterior Wash Pro XL QUAD is a professional-grade exterior wash light engineered for demanding outdoor lighting applications. Its large 40 cm lens diameter delivers expansive coverage with smooth color mixing, making it reliable equipment for architectural, event, and landscape lighting work. Built to withstand harsh environmental conditions, this fixture combines robust construction with sophisticated optical control.

Build & Environmental Durability

Cast aluminum housing with anodized and electrostatic powder-coated finish ensures long-term resistance to corrosion and physical damage. The IP66 protection rating and IK08 impact resistance qualify this fixture for permanent outdoor installation, while its C5 High corrosion rating makes it suitable for coastal and chemically aggressive environments.

Optical Control & Color Performance

A full color temperature control channel spanning 1000K to 12,500K provides complete creative flexibility, from deep tungsten warmth to crisp daylight. Dedicated Warm (2400K), Medium (4000K), and Cold (6500K) LED channels enable precise color blending, while external micro lenses and optional baffle snoot allow you to shape the beam from wide wash to tighter projection as needed.

Key Features

• 40 cm (15.8 in.) lens diameter
• Cast aluminum, anodized and electrostatic powder-coated housing
• IP66 protection rating for outdoor durability
• IK08 impact resistance and C5 High corrosion rating
• Color temperature control from 1000K to 12,500K
• Dedicated Warm (2400K), Medium (4000K), and Cold (6500K) LED channels
• Up to 10,400 lumens output at 4000K
• Maximum power consumption: 250W
• AC input: 100–240 / 277 V nominal, 50/60 Hz
• EU power cable: H07RN-F 3G 1.0 mm², 450/750V, VDE
• DMX and RDM control support (standard, basic, extended, and raw DMX modes)
• External micro lenses and optional baffle snoot for beam configuration

The Martin Exterior Wash Pro XL QUAD delivers professional output and control in a fixture built to last through years of outdoor operation.
