Martin Exterior Wash Pro M QUAD, EU, Grey

Martin Exterior Wash Pro M QUAD, EU, Grey

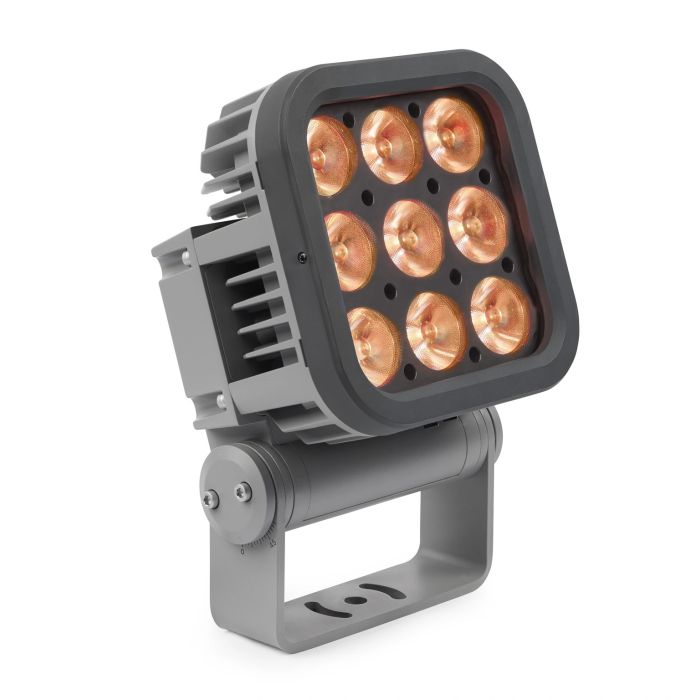

The Martin Exterior Wash Pro M QUAD is a compact, hard-wearing LED wash fixture engineered for outdoor deployment in demanding environments. Its anodized aluminum construction and sealed housing deliver reliable performance in wet conditions, while the adjustable mounting bracket accommodates flexible installation angles. The unit's substantial weight and compact footprint make it a practical choice for permanent or semi-permanent architectural lighting installations.

Durability & Environmental Resistance

Built with cast aluminum housing finished in traffic grey RAL 7042, this fixture resists corrosion to ISO 12944-6 C5 High standards—essential for coastal or chemically aggressive environments. The IP66 protection rating and IK08 impact resistance ensure reliability against water ingress and mechanical stress, while vibration testing to IEC 60068-2-6, IEC 60068-2-64, and ANSI C136-31 standards confirms stability under transportation and structural vibration.

Light Output & Control

The fixture houses 9 × RGBW LEDs with an 8-degree beam, providing precise color mixing across RGB + CTC (Color Temperature Control) modes with a range of 1000 K to 12500 K in 50 K steps. This combination delivers both saturated color work and refined white-light rendering, controllable via the 6-conductor combined input + output cable.

Key Features

• Cast aluminum housing with anodized and electrostatic powder-coat finish in traffic grey RAL 7042
• IP66 protection rating for sealed operation in wet environments
• IK08 impact resistance for mechanical durability
• C5 High corrosion resistance per ISO 12944-6
• 9 × RGBW LEDs with 8-degree beam angle
• RGB + CTC color mixing with 1000 K – 12500 K adjustable color temperature in 50 K steps
• Vibration resistance rated to IEC 60068-2-6, IEC 60068-2-64, and ANSI C136-31 standards
• Adjustable bracket mounting with any-orientation capability
• 2 m power cable tail (H07RN-F 3G 1.0 mm², EU specification) with open-ended connector
• 2 m combined 6-conductor data cable tail for input and output
• Compact dimensions: 165 mm L × 275 mm W × 370 mm H
• Weight: 12.4 kg (27.3 lbs); Effective Projected Area: 0.056–0.072 m²

The Martin Exterior Wash Pro M QUAD combines corrosion-resistant construction, sealed environmental protection, and precise color control in a compact form factor suitable for long-term outdoor lighting installations.
