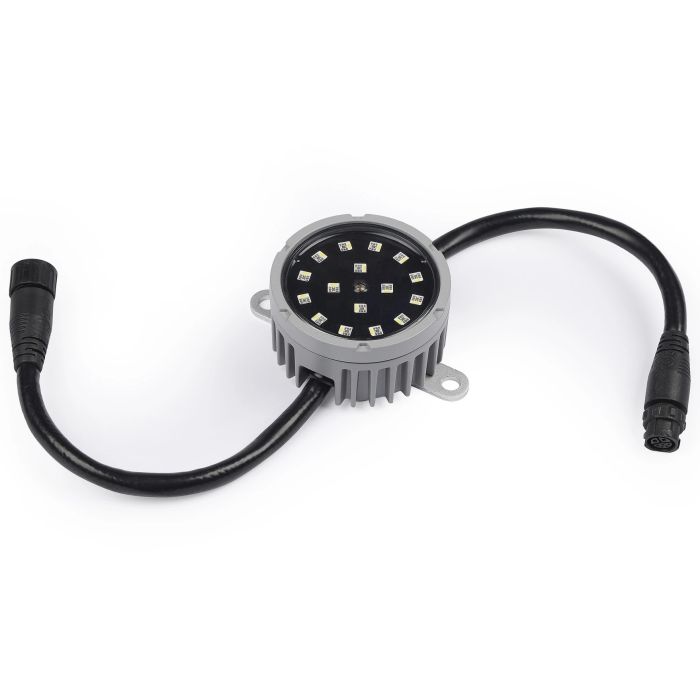

Martin Exterior Dot-HP Pro, Clear Front

Martin Exterior Dot-HP Pro, Clear Front

The Martin Exterior Dot-HP Pro is a compact, powerful LED fixture engineered for outdoor and architectural lighting applications where precise color control and uniform light distribution are essential. Its compact 78 mm diameter housing with clear front lens delivers focused illumination across a wide 150° viewing angle, making it equally suited to accent lighting, facade work, or dynamic color-changing installations in demanding environments.

Light Output & Color Performance

With 16 RGBW LEDs and 260 lumens full output at 6500K, this fixture produces rich, saturated colors across the entire spectrum from 2,000 K to 12,000 K. The CRI (Color Rendering Index) greater than 70 ensures accurate color representation, while 16-bit color resolution per channel (64 bits per pixel) enables smooth gradations and subtle color transitions without banding or stepping.

Integration & Control

Power and control arrive via hybrid In/Out connectors, drawing directly from a Martin P3 PowerPort or third-party 48 VDC PSU. The fixture responds to sACN or Art-Net-based controllers, including Martin P3 System Controllers, allowing seamless integration into networked lighting systems of any scale.

Key Features

• 16 RGBW LEDs with 90 candela total luminous intensity
• 260 lumens full output at 6500K
• Color temperature range: 2,000 K – 12,000 K
• 150° viewing angle with clear front lens
• CRI greater than 70 for accurate color rendering
• 16-bit color resolution per channel (64 bits per pixel)
• 78 mm diameter housing with clear front
• Dot pitch: 78 mm – 500 mm (fixture to fixture)
• Powered by Martin P3 PowerPort or 48 VDC external PSU
• Hybrid In/Out connectors
• Compatible with sACN and Art-Net control protocols
• Works with Martin P3 System Controllers

The Martin Exterior Dot-HP Pro delivers professional-grade color mixing and networked control in a durable, compact form factor suitable for permanent installations and touring productions alike.
