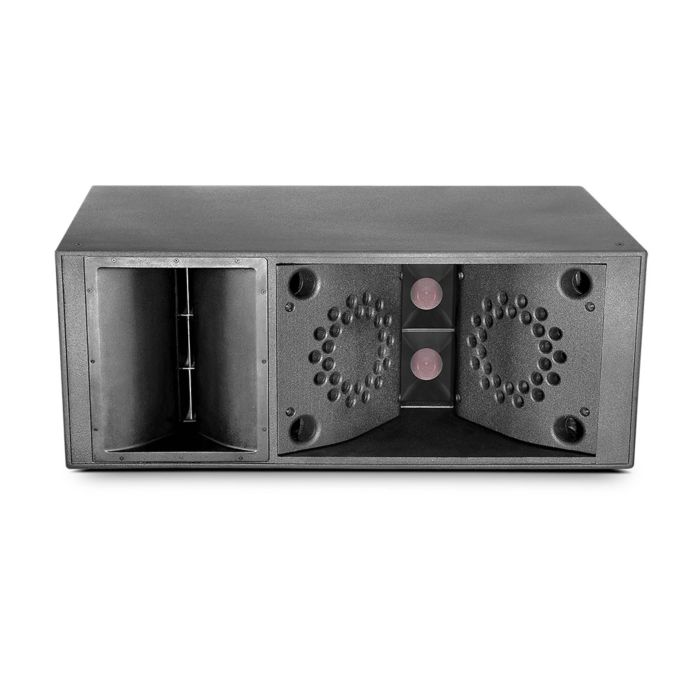

JBL VLA901i Three-Way Horn-Loaded Line Array System

The VLA901i is a compact three-way line array element engineered for consistent, controlled projection in studio monitoring and location recording setups. Its horn-loaded design delivers precise directivity with minimal coloration, making it ideal for critical listening environments, mastering suites, and tracking rooms where accurate spatial imaging and phase coherence are essential.

Acoustic Design & Coverage

This system achieves a 90° horizontal coverage pattern with a 12 dB directivity index, providing tight off-axis rejection and focused projection that integrates cleanly into room acoustics without excessive boundary reflections. The frequency response of 58 Hz–12 kHz (±3 dB) with extended range down to 41 Hz ensures full-spectrum monitoring clarity while the horn-loaded architecture minimizes phase issues common in line arrays, preserving mix detail across the listening plane.

Driver Architecture & Power

The VLA901i combines dual 15" and dual 8" midrange drivers—each with dual 3" neodymium voice coils—alongside three HF compression drivers with 1.5" exits for seamless integration across the spectrum. Peak power handling of 1860W allows substantial headroom in both passive and powered configurations, enabling dynamic tracking and mixing sessions without compression artifacts.

Key Features

• Two 15" low-frequency drivers with dual 3" voice coils and neodymium differential drive
• Two 8" midrange drivers with dual 3" voice coils and neodymium differential drive
• Three horn-loaded HF compression drivers with 1.5" exit and single 3" voice coil
• Frequency response 58 Hz–12 kHz (±3 dB); extended range 41 Hz–20 kHz (-10 dB)
• 90° horizontal coverage with 12 dB directivity index
• Maximum peak power handling of 1860W
• 18mm and 16mm exterior-grade Baltic birch plywood construction
• Black DuraFlex finish with Mil-Std 810 and IPx3 environmental protection
• 16 threaded M10 rigging connections for flexible line array configuration
• Barrier strip connector for signal input
• Compact dimensions: 533 x 1351 x 640 mm (21.0 x 53.2 x 25.2 in)

The VLA901i delivers the pattern control and output density required for professional monitoring and room-matched mixing without excessive cabinet size or weight per element.
