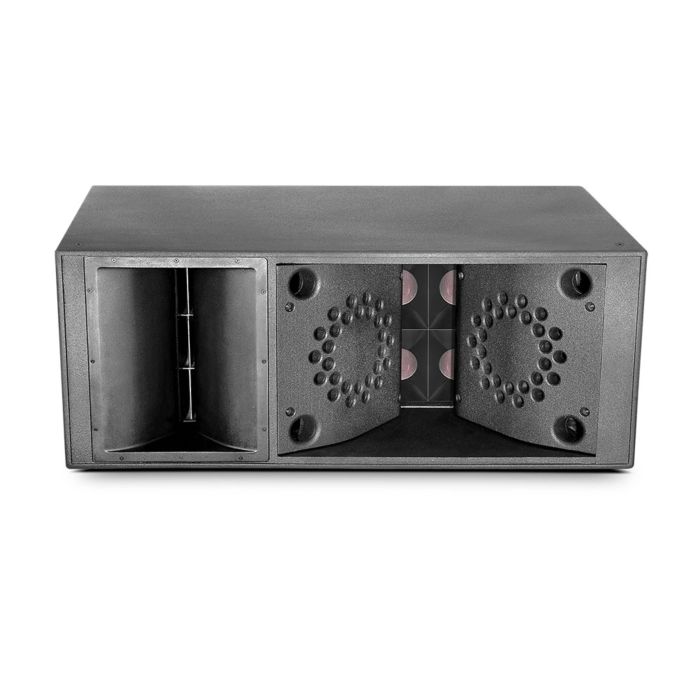

JBL VLA901HI-WRX Three-Way Horn-Loaded Line Array System

The VLA901HI-WRX is a weather-protected line array element engineered for demanding outdoor and semi-permanent installations where durability meets professional sonic performance. This three-way system combines horn-loaded efficiency with fiberglass weather protection, delivering consistent output across complex venue topologies without compromising on reliability or tonal integrity.

Acoustic Design & Coverage

A 90° horizontal horn coverage pattern and three-way driver configuration—2×15" low-frequency, 4×8" midrange, and 6×1.5" compression drivers—provide controlled directivity and smooth integration across frequency ranges. The horn-loaded design maximizes SPL efficiency while minimizing phase artifacts, ideal for line array deployments across festivals, touring installations, and fixed outdoor venues.

Construction & Weather Resistance

Built from 18mm and 16mm exterior-grade Baltic birch plywood and finished in gray fiberglass weather protection treatment, the WRX variant resists UV degradation, moisture intrusion, and temperature cycling. The 16-point rigging system with M10 threaded hardware—four points each on top, bottom, and rear, plus two on each side—enables secure, redundant suspension in demanding applications.

Key Features

• 2× JBL 2265H 15" low-frequency drivers
• 4× JBL 2169H 8" midrange drivers
• 6× JBL 2432H 1.5" exit compression drivers
• Frequency response: 41 Hz – 20 kHz (Flat preset)
• 90° horizontal horn coverage pattern
• Three-way horn-loaded configuration
• Gray fiberglass weather protection finish (WRX treatment)
• 18mm and 16mm exterior-grade Baltic birch plywood construction
• 16-point rigging system with M10 threaded hardware
• Weather-resistant design for outdoor and semi-permanent installations

The VLA901HI-WRX delivers the sonic coherence and weather durability required for high-stakes deployments where system reliability cannot be compromised.
