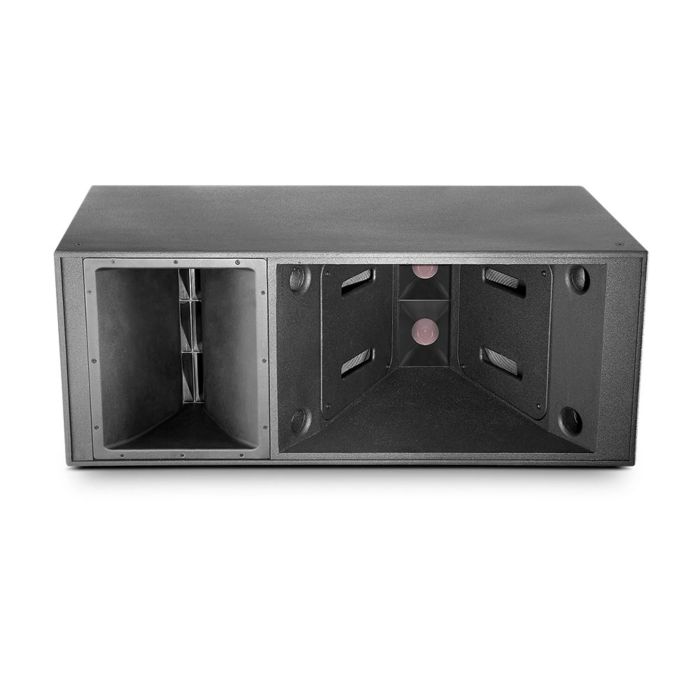

JBL VLA601I Three-way horn-loaded line array system

JBL VLA601I Three-Way Horn-Loaded Line Array System

The VLA601I is a compact three-way line array element engineered for consistent coverage and high-output capability in studio monitoring, post-production facilities, and small-to-mid-sized live recording environments. Its horn-loaded design delivers controlled directivity with smooth tonal integration, making it an excellent choice for capturing accurate playback references, critical listening tasks, and hybrid recording/performance setups where precision control matters.

Acoustic Performance

This system achieves 147.2 dB SPL at 1 meter with a 60° horizontal horn coverage pattern, ensuring even sound distribution and predictable frequency response across the listening plane. The frequency response spans 41 Hz to 20 kHz (−10 dB), providing full-range fidelity from deep bass through crisp highs with the articulation and low-distortion character expected from JBL's professional driver lineup—critical for accurate mix translation and session reference work.

Build & Rigging

Constructed from 18mm and 16mm exterior-grade Baltic birch plywood with DuraFlex™ finish or optional fiberglass, the cabinet weighs 315 lbs and features 16 M10 threaded suspension attachment points for secure rigging and modular array configuration. The robust build quality and multiple finish options support both permanent installation in control rooms and flexible deployment for temporary recording sessions or mobile studio setups.

Key Features

• 2 × JBL 2265H 15" low-frequency drivers with dual 3" voice coil and Neodymium Differential Drive
• 2 × JBL 2169H 8" mid-frequency drivers with dual 3" voice coil and Neodymium Differential Drive
• 3 × JBL 2432H 1.5" exit compression drivers with 3" voice coil and Neodymium magnet
• 1000W continuous power handling (LF), 400W continuous (MF), 160W continuous (HF) — IEC/100 hour rating
• 60° horizontal coverage pattern for predictable array behavior
• Frequency range: 41 Hz – 20 kHz (−10 dB)
• Maximum SPL: 147.2 dB at 1 meter
• 16 suspension points (4 each top, bottom, and rear; 2 each side) with M10 threaded hardware
• 18mm and 16mm exterior-grade Baltic birch plywood construction
• Available finishes: Black DuraFlex™ (standard), Gray DuraFlex™, or Gray Fiberglass
• Weight: 315 lbs

The VLA601I combines precise driver integration, proven JBL reliability, and flexible mounting architecture to deliver consistent, transparent monitoring and playback in professional recording and production environments.
