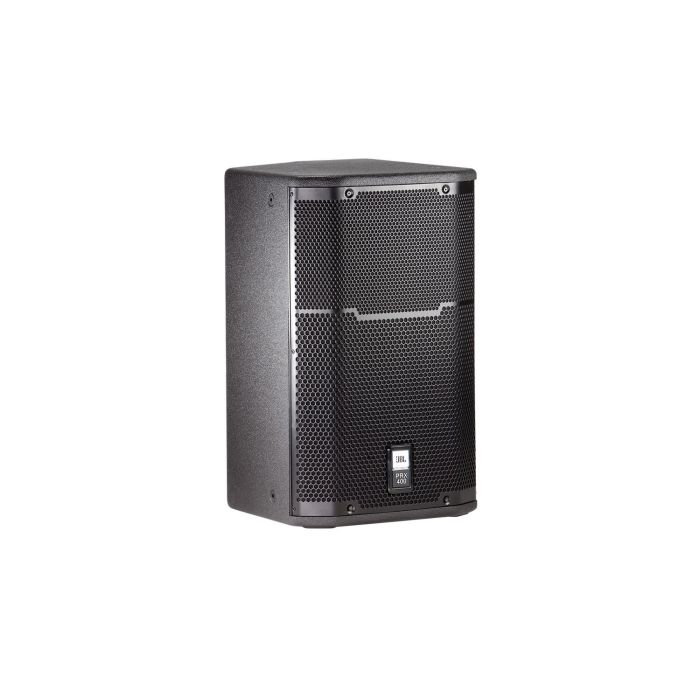

JBL PRX412M 12" Two-Way Stage Monitor and Loudspeaker System
In stock
- SKU
- PRX412M
Description
JBL PRX412M 12" Two-Way Stage Monitor and Loudspeaker System
The PRX412M is a compact, lightweight reference monitor and playback tool designed to deliver consistent, predictable output across studio monitoring, small-venue sound reinforcement, and session work. At 35 lbs with a footprint of 22.6" x 13.9" x 15.7", it balances portability with serious acoustic capability, making it equally at home on a desktop stand or mounted for permanent studio installations.
Audio Performance & Coverage
This two-way system pairs a 12" woofer with a 1" polymer diaphragm compression driver to achieve a 95 dB SPL sensitivity (1W@1m) and a rated maximum output of 126 dB SPL peak. The 90° x 50° coverage pattern ensures even, smooth response both on and off axis, while the frequency response of 62Hz–19kHz (±3dB) and full range down to 50Hz (–10dB) captures kick drum through vocal detail with transparency and minimal coloration, keeping your mix decisions grounded in accurate playback.
Design & Build Quality
The PRX412M employs a birch/poplar multi-laminate hardwood enclosure finished in tough DuraFlex™ for durability in the studio and field. A 16-gauge protective steel grille backed with acoustically transparent cloth guards the drivers, while SonicGuard™ high-frequency driver protection prevents damage from excessive input levels without interrupting performance. Dual-angle pole sockets and twelve M10 suspension points constructed from 14-gauge steel provide flexible mounting options for both temporary session setups and permanent studio placement.
Key Features
- 12" woofer and 1" polymer diaphragm compression driver
- Power Rating: 300W Continuous / 600W Program / 1,200W Peak
- Nominal Impedance: 8 ohms
- Frequency Range (–10dB): 50Hz–20kHz
- Frequency Response (±3dB): 62Hz–19kHz
- System Sensitivity: 95dB SPL (1W@1m)
- Rated Maximum SPL: 126dB peak
- Coverage Pattern: 90° x 50° nominal
- Parallel Neutrik® Speakon® NL-2 / ¼" phone combination jacks
- Dual-angle pole mount sockets with twelve M10 suspension points
- Birch/poplar multi-laminate hardwood enclosure with DuraFlex™ finish
- 16-gauge protective steel grille with acoustically transparent cloth backing
- SonicGuard™ high-frequency driver protection
- Net Weight: 35 lbs (16 kg)
The PRX412M combines proven JBL engineering with practical studio and session design, delivering reliable, controlled monitoring and playback for producers, engineers, and recording spaces requiring dependable nearfield and midfield reference capability.
More Information
| Condition | New |
|---|---|
| Country of Manufacture | China |
Reviews
At a Glance
The JBL PRX412M is a portable two-way reference monitor and playback speaker offering 95 dB sensitivity and 126 dB peak SPL, making it ideal for compact control-room setups, cue mixes, or nearfield listening in tight home-studio spaces. Its 62Hz–19kHz response and smooth off-axis character work well for checking mixes and providing reliable monitoring feedback during tracking and overdubs. Choose it for flexible wall or stand mounting, professional build quality, and the ability to scale up to multi-speaker playback rigs without expensive expansion.
Frequently Asked Questions
What is the coverage pattern and will it work for front-of-house or side-fill?
The PRX412M has a 90° x 50° coverage pattern designed for smooth, consistent response both on and off axis. It works well for stage monitoring, side-fill, and small-venue front-of-house applications; larger venues typically benefit from multiple units or larger main speakers.
How much power do I need to drive it and what amps are compatible?
The PRX412M is rated for 300W continuous, 600W program, and 1,200W peak handling at 8 ohms nominal impedance. Any pro audio amplifier or powered mixer with standard Speakon® or ¼" phone outputs can drive it; consult your amp's specs to match power output to your headroom needs.
What mounting options does it have and can I fly it from a truss?
The PRX412M includes dual-angle pole mount sockets and twelve M10 suspension points constructed from 14-gauge steel, allowing both temporary pole mounting and light-duty rigging. At 35 lbs, it is suitable for suspension systems rated for that load.
Does it have low-frequency output and will it work without a subwoofer?
The PRX412M extends to 50Hz at –10 dB and 62Hz at ±3 dB, handling kick drum and bass guitar without significant gap. For deep extended bass or high-SPL low-end reinforcement, pairing it with a subwoofer will improve overall impact.
What connectors does it use and are they standard?
The PRX412M has parallel Neutrik® Speakon® NL-2 and ¼" phone combination jacks, both industry-standard connectors for pro audio gear. You can use either connector type or both simultaneously for flexibility.
