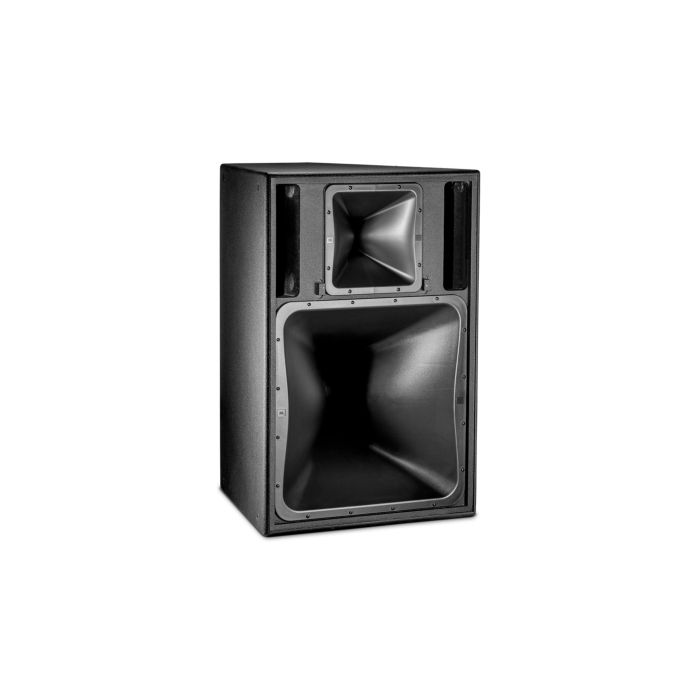

JBL PD6322/66-WH Dual 12" Three-Way Full-Range Loudspeaker

The PD6322/66-WH is a versatile three-way system designed for professional recording studios, mastering facilities, and mixing environments requiring accurate, full-spectrum monitoring. Its dual 12" low-frequency design paired with mid and high-frequency compression drivers delivers controlled directivity and consistent coverage across the 60° × 60° pattern. The rotatable waveguide accommodates both horizontal and vertical mounting, giving your control room or live room layout flexibility without sacrificing acoustic coherence.

Recording & Monitoring Accuracy

This system achieves 135 dB-SPL continuous average output (141 dB peak) in passive mode, offering plenty of headroom for tracking loud sources and maintaining translation across extended mixing sessions. The 49 Hz to 16 kHz frequency response (±3 dB) combined with 110 dB-SPL sensitivity at 1W/1m means you capture articulate, full-spectrum reproduction across your session without masking detail, while the 1.75 kHz passive crossover ensures clean driver integration across the critical midrange where mix decisions live.

Driver Configuration & Amplifier Compatibility

Construction centers on two JBL 2206H 12" vented gap cooled transducers with 4" voice coils, a CMCD-82H 8" cone midrange driver, and a 2432H 1.5" compression driver, rated to handle 1200W LF, 350W MF, and 75W HF respectively. The cabinet supports both tri-amp and bi-amp (passive mid-high) configurations via Neutrik Speakon® NL8 connectors plus CE-compliant barrier strip terminals, allowing integration into flexible monitoring chains and external crossover workflows.

Key Features

• Dual JBL 2206H 12" vented gap cooled low-frequency transducers with 4" voice coils
• CMCD-82H 8" cone midrange compression driver with dual 3" voice coils
• 2432H 1.5" exit compression driver with 3" voice coil
• Nominal impedance: 4 ohms
• Frequency response ±3 dB: 49 Hz to 16 kHz
• Frequency range (–10 dB): 41 Hz to 18 kHz
• Maximum SPL: 135 dB continuous / 141 dB peak
• System sensitivity: 110 dB-SPL at 1W/1m (passive mode)
• Coverage pattern: 60° × 60°
• Passive crossover: 1.75 kHz
• Tri-amp and bi-amp (passive mid-high) capable
• Rotatable waveguide for horizontal or vertical installation
• White finish with Neutrik Speakon® and barrier strip connectivity

The PD6322/66-WH combines the extended low-end reach of dual 12" drivers with precise mid and high-frequency control, making it a reliable monitoring solution for studios and production spaces that demand transparent sound reproduction and session versatility.
