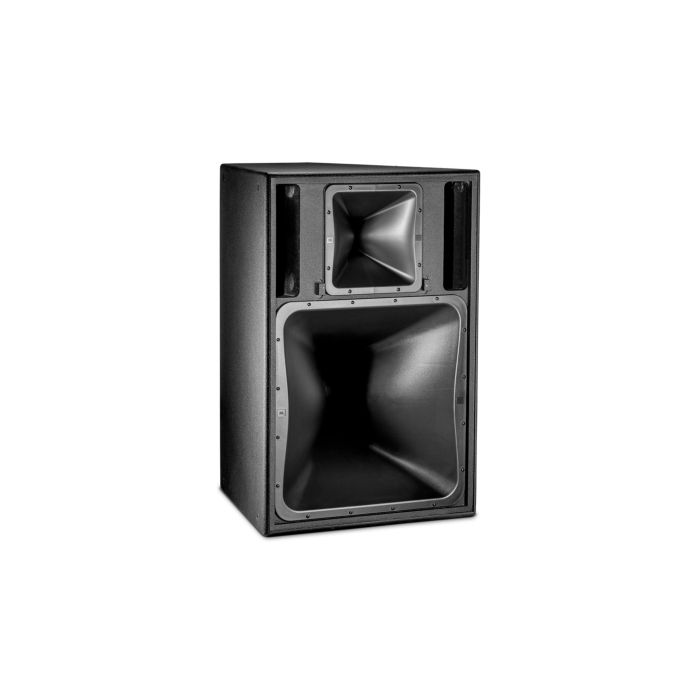

JBL PD6322/64-H Dual 12" Three-Way Full-Range Loudspeaker

The PD6322/64-H is a professional-grade three-way system engineered to capture and reproduce demanding material with clarity and power across the full spectrum. Dual 12" low-frequency transducers paired with compression driver midrange and treble sections deliver controlled, articulate output that translates reliably in mixing and monitoring applications, with robust construction built for years of studio session work or permanent installation in tracking rooms and larger spaces.

Acoustic Performance

The system achieves 49 Hz to 15 kHz (±3 dB) frequency response with extended reach down to 41 Hz at -10 dB, providing authoritative low-end extension without sacrificing clarity in the midrange and highs. A 60° x 40° coverage pattern ensures controlled directivity suited for nearfield monitoring, array configurations, or fixed installation where consistent imaging and pattern control support accurate mixing decisions.

Amplifier Flexibility & Connectivity

The tri-amp / bi-amp switchable crossover accommodates various studio and installation setups, from fully powered multi-channel monitor rigs to passive mid-high configurations integrated with external amplification. Dual input options—NL8 speakON and barrier strip connectors—provide routing flexibility for seamless integration into existing studio signal chains and patchbay systems.

Key Features

• Dual 2206H 12" vented gap cooled (VGC) low-frequency transducers with 4" voice coils
• CMCD-82H 8" cone midrange compression driver with 3" voice coil
• 2432H 1.5" exit compression driver with 3" voice coil
• Frequency response (±3 dB): 49 Hz to 15 kHz
• Frequency response (-10 dB): 41 Hz to 17 kHz
• Coverage pattern: 60° x 40°
• 6th order (36 dB/octave) Linkwitz-Riley passive crossover at 1.5 kHz
• Tri-amp / bi-amp switchable crossover modes
• Transducer power rating (AES): 1600 W LF (6400 W peak, 2 hrs)
• Dimensions: 991 x 673 x 706 mm (39 x 26.5 x 27.8 in)
• Weight: 77 kg (170 lbs)
• NL8 speakON and barrier strip inputs

The PD6322/64-H combines proven dual 12" bass architecture with precision mid and high-frequency drivers, delivering the output and pattern control required in professional sound reinforcement environments.
