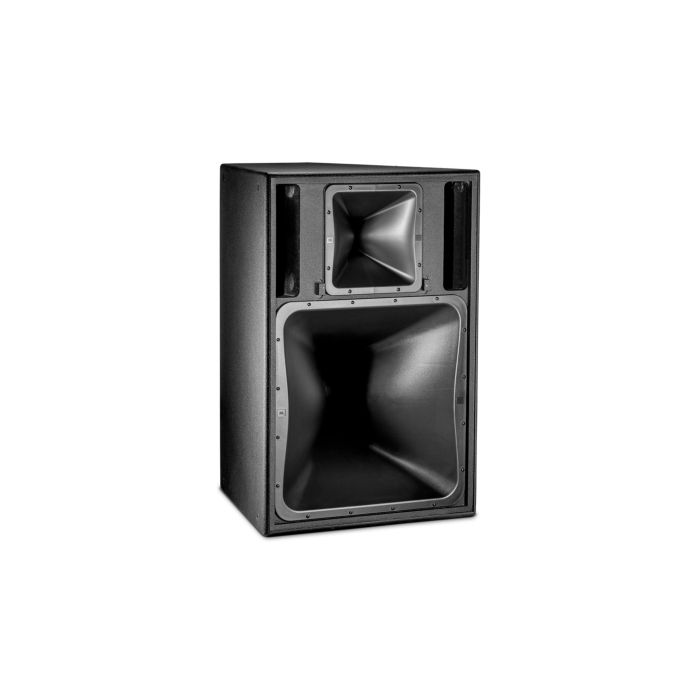

JBL PD6322/43 Dual 12" three-way full-range loudspeaker

JBL PD6322/43 Dual 12" Three-Way Full-Range Loudspeaker

The PD6322/43 is a versatile three-way system engineered for studio monitoring, post-production, and live recording applications where accurate directional coverage and flexible placement matter. Its rotatable design and dual-12" configuration deliver authoritative low-end response paired with controlled midrange and high-frequency projection, making it equally capable as a main or secondary monitoring reference in control rooms, remote truck setups, and acoustic testing environments.

Acoustic Design & Coverage

Dual JBL 2206H 12" vented gap cooled woofers with 4" voice coils anchor the low end with articulate bass definition, while the CMCD-82H 8" compression driver and 2432H 1.5" HF driver with neodymium magnet deliver consistent midrange clarity and presence detail. The 40x30° coverage pattern via two rotatable PT Progressive Transition waveguides ensures even directional control and dispersion, critical for both nearfield monitoring and distributed listening positions within the recording space.

Build & Configuration

Constructed from 16 mm exterior-grade 11-ply Finnish birch plywood, the cabinet resists the wear of repeated repositioning and acoustic treatment mounting. The 20 M10 threaded suspension points accommodate wall mounting, isolation mounts, or strategic placement, while the compact slot-loaded configuration keeps dimensions manageable—39.0" H × 26.5" W × 27.8" D in vertical orientation—without sacrificing output or low-frequency extension to 40 Hz.

Key Features

• Dual JBL 2206H 12" vented gap cooled low-frequency transducers with 4" voice coils
• CMCD-82H 8" cone midrange compression driver with 3" voice coil
• 2432H 1.5" exit compression driver with neodymium magnet and aluminum diaphragm
• 40x30° coverage with two rotatable PT Progressive Transition waveguides
• Frequency response extends to 40 Hz
• Tri-amp or bi-amp (passive mid-high) operational modes
• 16 mm 11-ply Finnish birch plywood exterior construction
• Rotatable for vertical or horizontal orientation
• 20 M10 threaded suspension points for flying or stacking
• Compact slot-loaded enclosure design
• Dimensions: 991 × 673 × 706 mm (39.0 × 26.5 × 27.8 in) vertical
• Mil-Std 810 and IP-x3 per IEC529 environmental rating

The PD6322/43 combines professional-grade acoustic performance, flexible mounting, and predictable coverage in a package built to sustain the demands of studio and field recording work.
