JBL PD6212/95-WH 12" two-way horn-loaded loudspeaker (white)

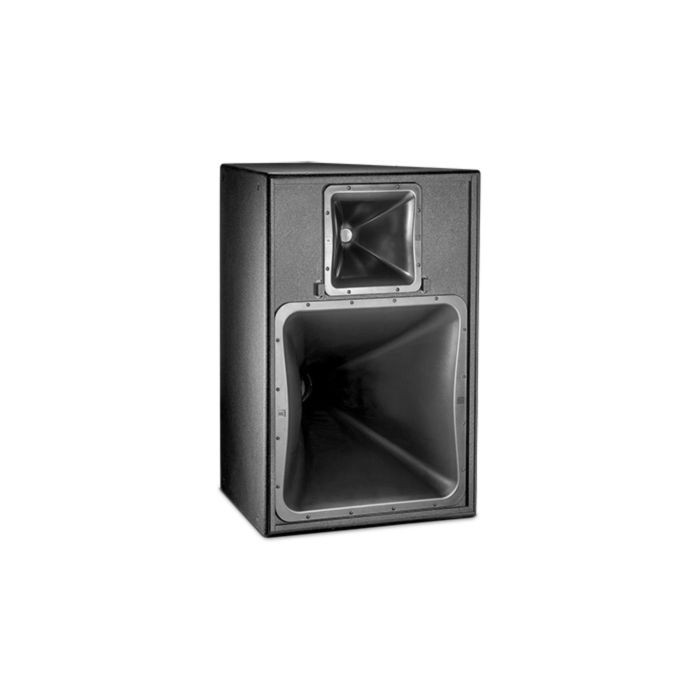

JBL PD6212/95-WH 12" Two-Way Horn-Loaded Loudspeaker

The PD6212/95-WH is a compact, rigged two-way system engineered to deliver controlled, articulate coverage in studio monitoring setups and mid-sized tracking rooms. Its horn-loaded design minimizes proximity coloration and maintains consistent frequency response across the listening plane, while the robust Finnish birch enclosure and extensive rigging points allow flexible placement on stands, poles, or as part of a larger surround array.

Acoustic Performance

With a 90 Hz to 16 kHz frequency response and 90° × 50° coverage pattern, this speaker maintains even tonal balance and controlled dispersion, ideal for mixing environments where multiple listeners need consistent tonal reference. The 12" low-frequency driver with 3" voice coil pairs with a 1.5" exit compression driver featuring a pure titanium diaphragm and neodymium magnet, delivering articulate highs and punchy lows without sacrificing coherence—essential for tracking drums, bass, and full-band sessions.

Design & Build

The trapezoidal enclosure is constructed from 16 mm exterior-grade 11-ply Finnish birch plywood with 15-degree side angles, optimizing both structural integrity and consistent wavefront propagation to prevent room modes and phase issues during recording. Finished in clean white with a powder-coated perforated steel grille and foam backing, the cabinet resists studio wear while the 20 M10 suspension points (5 top, 5 bottom, 4 each side, 2 rear) enable flexible placement configurations for optimal mic and performer positioning.

Key Features

• 12" low-frequency driver with 3" voice coil
• 1.5" exit high-frequency compression driver with 4" voice coil, neodymium magnet, and pure titanium diaphragm
• Steep-slope passive crossover network with switchable bi-amp/passive crossover modes
• Frequency response: 90 Hz to 16 kHz
• Coverage pattern: 90° × 50°
• Long-term system power rating (passive mode): 300 W (1200 W peak), 100 hrs
• Dimensions: 991 × 673 × 897 mm (39.0 × 26.5 × 35.3 in) in vertical orientation
• Trapezoidal enclosure with 15-degree side angles and 16 mm exterior-grade 11-ply Finnish birch plywood
• Neutrik Speakon NL4 and CE-compliant covered barrier strip terminals (up to 10 AWG wire or 9 mm spade lugs)
• 20 suspension attachment points with M10 threaded hardware
• Mil-Std 810 compliance and IP-x3 per IEC529 environmental rating
• Powder-coated 14 gauge perforated steel grille with foam backing and white finish

This system combines professional build quality with flexible studio deployment, providing reliable monitoring and tracking capabilities where controlled, phase-coherent coverage and long-term durability are critical to capturing great recordings.
