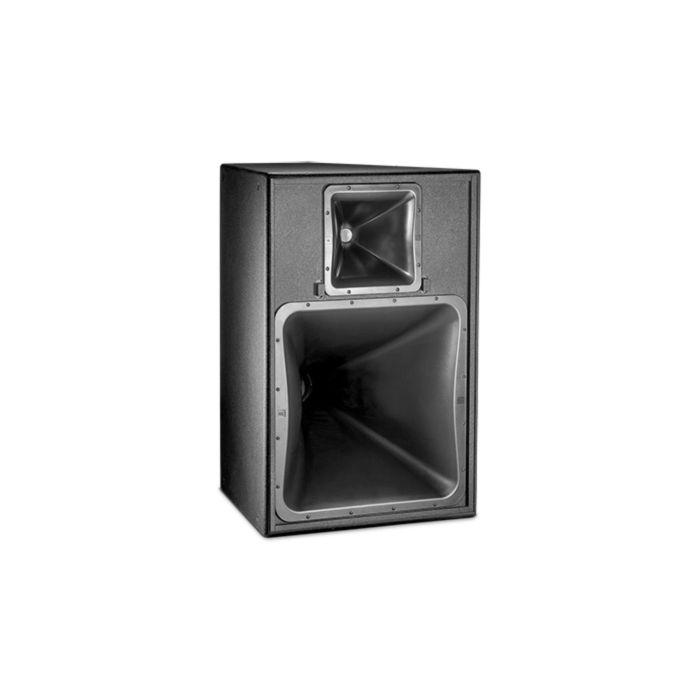

JBL PD6212/66 12" two-way horn-loaded loudspeaker

JBL PD6212/66 12" Two-Way Horn-Loaded Loudspeaker

The PD6212/66 is a professional-grade two-way loudspeaker engineered for precise, controlled acoustic behavior in studio monitoring and small-to-medium venue playback applications. Its horn-loaded design delivers focused directivity with minimal phase issues, while the rotatable waveguides adapt to either vertical or horizontal placement without acoustic compromise. This is a versatile cabinet that prioritizes predictable imaging, transparent midrange rendering, and reliable component integration for tracking, mixing, and live sound work.

Acoustic Performance

The 80 Hz to 18 kHz frequency response covers the critical midrange and treble with precision, revealing detail in vocals, instruments, and mix elements while maintaining clarity in the low-mid region. The 60° × 60° coverage pattern ensures even sound distribution across the listening area without spectral imbalances or off-axis coloration. The 12" low-frequency driver with 3" voice coil paired with the 1.5" exit compression driver featuring a 4" voice coil creates a balanced, articulate response suited to accurate reproduction across tracking sessions, live monitor mixing, and music reinforcement applications.

Build & Integration Flexibility

Constructed from void-free plywood with extensive internal bracing, the cabinet resists panel vibration and maintains structural integrity through years of studio and touring use. The PD6212/66 operates in both bi-amped and passive configurations, accepts both Speakon® and CE-compliant barrier strip connectors, and includes twenty M10 threaded suspension points for flexible mounting and positioning in any studio or venue layout.

Key Features

• 12" low-frequency driver with 3" voice coil (M222-8A)
• 1.5" exit high-frequency compression driver with 4" voice coil (2453H)
• Frequency response: 80 Hz to 18 kHz
• 60° × 60° coverage pattern
• Void-free plywood cabinet with extensive internal bracing
• Bi-amped or passive operation
• Speakon® and CE-compliant barrier strip inputs
• Rotatable low- and high-frequency waveguides for vertical or horizontal orientation
• Twenty M10 threaded suspension points
• Dimensions: 991 × 673 × 706 mm (39 × 26.5 × 27.8 in)
• Weight: 69 kg (152 lbs)
• Digital signal processing required to achieve specified performance

The PD6212/66 delivers professional-level output and directional control with the flexibility to integrate into existing studio and venue monitoring systems.
