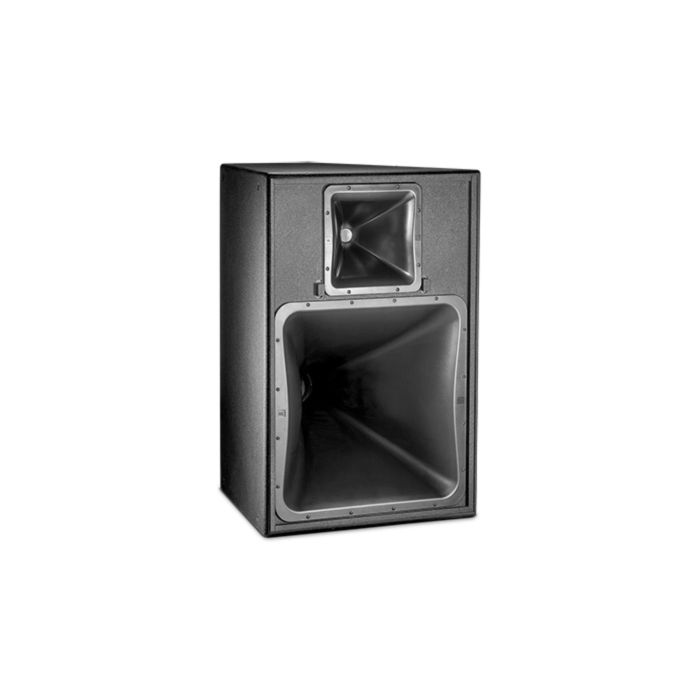

JBL PD6212/43 12" Two-Way Horn-Loaded Loudspeaker

The PD6212/43 is a professionally engineered two-way system built for studio monitoring, tracking playback, and critical listening environments where acoustic predictability matters. Its horn-loaded design delivers focused acoustic energy with minimal coloration, making it an excellent choice for control rooms, mixing suites, and production spaces requiring precise pattern control and headroom for demanding sessions.

Acoustic Design & Monitoring Characteristics

The combination of a 12" low-frequency driver with a 1.5" exit high-frequency compression driver provides seamless integration across the frequency spectrum. PT™ Progressive Transition™ waveguides control the 40° × 30° coverage pattern while maintaining smooth response and low distortion at high output levels, delivering consistent sound across your mix position and furnishing enough headroom for tracking loud sources without strain.

Connectivity & Workflow Integration

The system accepts input via Neutrik Speakon® NL4 connectors and CE-compliant covered barrier strip terminals, accommodating both modern audio interfaces and legacy studio wiring. A switchable bi-amp/passive crossover allows use in passive mode or integration into active monitoring setups and hybrid systems, while rotatable low and high frequency waveguides enable either horizontal or vertical cabinet orientation to match your studio layout and ear-level positioning.

Key Features

• 12" horn-loaded low-frequency driver with 3" voice coil
• 1.5" exit high-frequency compression driver with 4" voice coil
• PT™ Progressive Transition™ waveguides for broad-band pattern control
• 40° × 30° fixed coverage pattern
• Switchable bi-amp/passive crossover network
• Rotatable waveguides for horizontal or vertical orientation
• Neutrik Speakon® NL4 and barrier strip terminal connectivity
• Powder-coated 14-gauge perforated steel grille with foam backing
• Dimensions: 991 × 673 × 897 mm (39 × 26.5 × 35.3 inches)
• Weight: 79.5 kg (175 lbs)
• IP-x3 environmental rating per IEC 529

The PD6212/43 combines robust construction with genuine pattern control and acoustic consistency, delivering transparent high-frequency reproduction and controlled low-end that recording engineers and producers depend on for accurate mix decisions.
