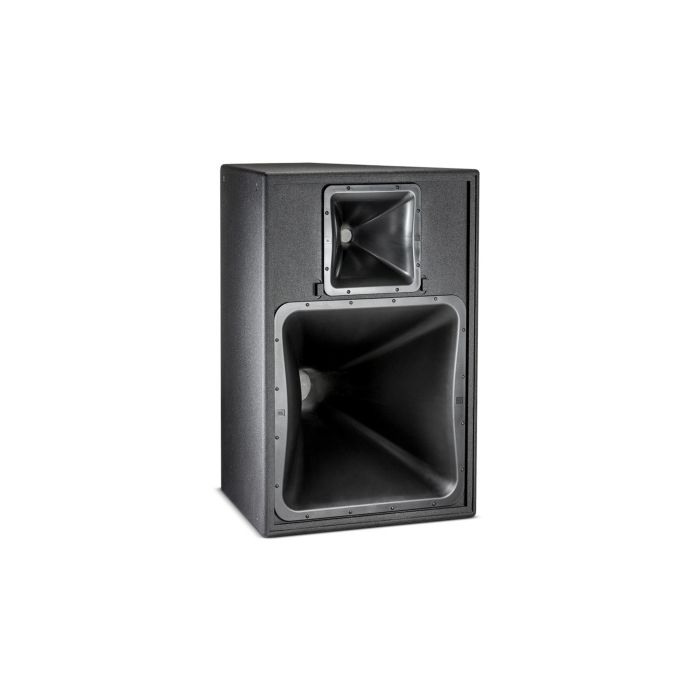

JBL PD6200/95 Two-way mid-high horn-loaded loudspeaker

JBL PD6200/95 Two-Way Mid-High Horn-Loaded Loudspeaker

The PD6200/95 functions as a precision mid-high monitor and fill speaker for studio monitoring arrays and control-room augmentation. This horn-loaded design captures focused midrange and high-frequency detail with controlled directivity, making it ideal for tracking sessions, mix-down verification, and critical listening environments where consistent acoustic behavior across the listening plane is essential for confident mixing decisions.

Acoustic Design & Monitoring Precision

The 90° x 50° horn waveguide with PT Progressive Transition technology minimizes off-axis coloration and delivers flat, predictable frequency response throughout the listening area—a critical advantage for mix translation and session work. The rotatable waveguides allow horizontal or vertical cabinet positioning, letting you quickly optimize cabinet placement for different room geometries and control-room configurations without signal path changes.

Driver Configuration & Sonic Clarity

A 200 mm (8-inch) dual-coil CMCD cone midrange compression driver anchors the midrange spectrum with transparency and articulation, critical for hearing vocal presence and instrumental definition during mix sessions. The 2432H high-frequency compression driver with neodymium magnet and aluminum diaphragm delivers extended, detailed highs with controlled beam characteristics. The 1.5-inch exit high-frequency driver integrates smoothly with the midrange, maintaining coherent spectral balance across the presence region.

Key Features

• 8-inch 2-way horn-loaded speaker with 90° x 50° directional horn
• 300W continuous power rating
• 200 mm dual-coil CMCD cone midrange compression driver
• 1.5-inch exit high-frequency compression driver
• 2432H compression driver with neodymium magnet and aluminum diaphragm
• PT Progressive Transition waveguides for smooth frequency integration
• Rotatable waveguides for horizontal or vertical cabinet orientation
• Biamplified or passive operation capability
• Speakon and CE-compliant covered barrier strip connectors
• Twenty M10 threaded suspension points for flexible rigging

The PD6200/95 unites controlled directivity with high-resolution driver performance to deliver the tonal accuracy and midrange articulation essential for detailed tracking, mixing, and critical monitoring in professional studio environments.
