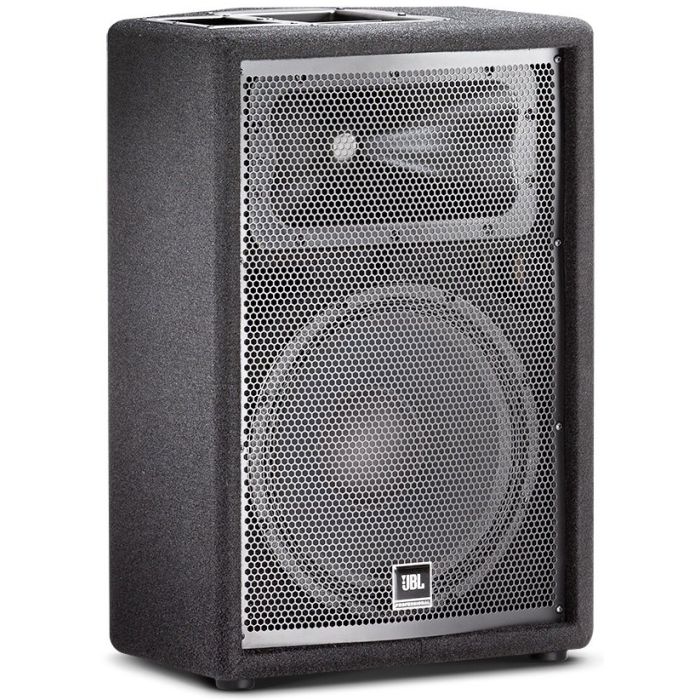

JBL JRX212 12 in. Two-Way Stage Monitor Loudspeaker System

JBL JRX212 12 in. Two-Way Stage Monitor Loudspeaker System

The JRX212 is a portable, rugged stage monitor built to handle the demands of live performance. Its compact footprint and dual non-resonant steel handles make it practical to position and transport, while the 19 mm MDF enclosure with advanced adhesives delivers durability without compromising acoustic integrity. This is a workhorse designed to survive repeated touring and sit reliably on stage night after night.

Acoustic Performance & Coverage

With a 98 dB sensitivity rating and 128 dB maximum SPL, the JRX212 delivers commanding output from modest amplifier power. The 90° x 50° nominal dispersion combined with a dual-angle pole-mount socket (10° tilt capability) ensures uniform coverage across stage monitoring positions, while the Progressive Transition™ waveguide on the high-frequency driver reduces distortion and smooths response across the critical crossover region.

Drivers & Power Handling

The system pairs a JBL 12 in low-frequency driver with a 64 mm edgewound ribbon voice coil—which provides greater cross-sectional wire area than round wire designs for improved efficiency—with a JBL 2414H-C 25 mm polymer diaphragm compression driver. The advanced network topology crossover at 2.1 kHz uses high-voltage capacitors and inductors with heavy gauge wire to handle 250 watts continuous and 1000 watts peak power without saturation, while SonicGuard™ protection safeguards the high-frequency driver from excess power during live performance.

Key Features

• 12" two-way stage monitor system with dedicated high and low frequency drivers
• JBL 2414H-C compression driver with 25 mm polymer diaphragm on Progressive Transition™ waveguide
• JBL M112-8 12 in woofer with 64 mm edgewound ribbon voice coil
• 2.1 kHz crossover frequency with advanced network topology design
• 98 dB sensitivity (1W/1m) for efficient amplifier coupling
• 128 dB maximum SPL with 250W continuous / 1000W peak capacity
• Frequency response ±3 dB: 80 Hz – 18 kHz; range to 60 Hz – 20 kHz (-10 dB)
• 90° x 50° nominal dispersion with dual-angle pole-mount socket (10° tilt)
• 19 mm MDF enclosure with 18-gauge perforated steel grille and all-steel handles
• 8 Ω nominal impedance; recommended 250–500W amplifier @ 8 Ω
• Neutrik® Speakon® NL-4 and .25" TS phone jack inputs (parallel)
• Compact dimensions: 23" H x 15.7" W x 12.8" D; weighs 43 lb

The JRX212 combines professional-grade drivers, intelligent crossover design, and roadworthy construction to deliver reliable stage monitoring for touring bands, theaters, and live venues.
