JBL Hp DS170D Jbl HP-DS170-DN

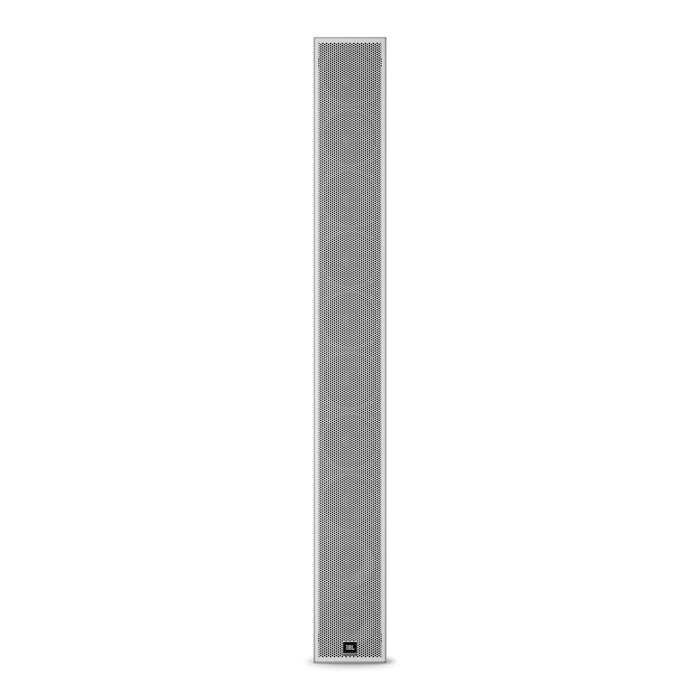

JBL Intellivox HP-DS170 Powered Column Loudspeaker

The JBL HP-DS170 is a professional-grade powered column speaker engineered for consistent, intelligible coverage across large venues and outdoor installations. This beam-shaping system delivers controlled directivity without the acoustic dead zones typical of conventional arrays, making it ideal for churches, conference centers, and outdoor events where even sound distribution is critical.

Acoustic Performance & Coverage

Maximum output reaches 106 dB SPL at 30 meters, providing substantial headroom for speech reinforcement and music playback in medium to large spaces. The 100° horizontal dispersion ensures even coverage across wide listening areas while minimizing off-axis coloration and feedback issues.

Design & Build Quality

Constructed as a 2-way, wide-bandwidth beam-shaping powered column, the HP-DS170 combines compact mounting with sophisticated driver architecture. The IP55 enclosure rating protects against dust and water spray, making it suitable for indoor and sheltered outdoor installations without sacrificing tonal integrity.

Key Features

• 2-way, wide-bandwidth beam-shaping powered column loudspeaker
• 10 high-efficiency 6.5" loudspeakers with dedicated amplification
• 2 coaxially mounted 1" compression drivers with dedicated amplification
• Maximum output: 106 dB SPL at 30 meters (100 ft)
• Horizontal dispersion: 100°
• Array length: 1.7 meters (5' 7")
• Weight: 56 kg (123 lbs)
• IP55 enclosure protection rating
• RS-485 Serial Control
• Built-in DSP for real-time acoustic optimization

The combination of dedicated amplification for each driver type, integrated DSP processing, and professional-grade protection rating makes the HP-DS170 a reliable choice for demanding fixed installations requiring predictable performance and minimal maintenance.
