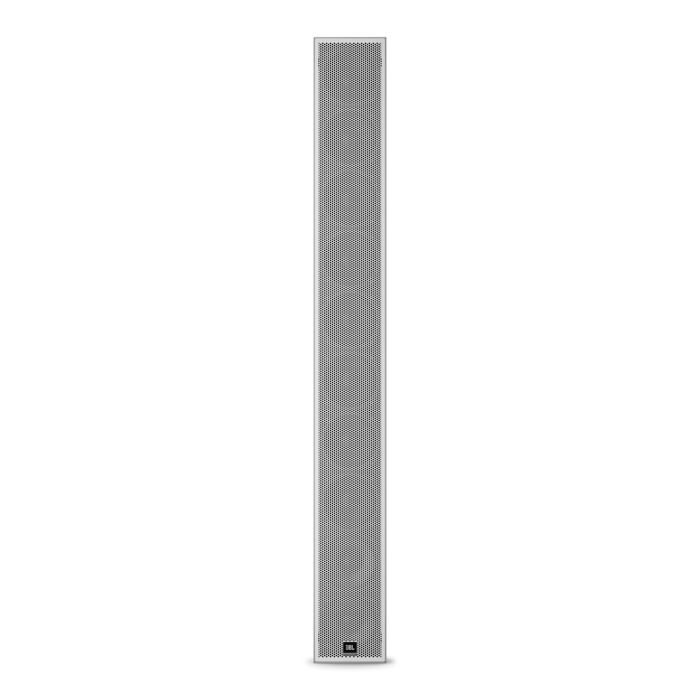

JBL Intellivox HP-DS170 Powered Column Loudspeaker

The JBL HP-DS170 is a self-contained, beam-shaping powered column system engineered for consistent coverage across large venues and outdoor spaces. This professional-grade loudspeaker combines multiple drivers with integrated amplification in a compact, portable form factor that delivers intelligible speech and balanced music reinforcement without requiring external processing or separate amplifiers.

Recording & Mix Integration

Capable of 106 dB SPL at 30 meters with a 100° horizontal dispersion pattern, this system maintains clarity and projection across wide listening areas. The coaxial design ensures that high and low frequencies arrive at the listener simultaneously, reducing phase anomalies and improving accuracy—critical for recording monitoring, overdubs, and tracking sessions where phase coherence directly impacts what you capture to tape.

Driver Configuration & Studio Performance

Ten 6.5" high-efficiency woofers paired with two 1" compression drivers—each with dedicated amplification—create a balanced, multi-way architecture that handles full-spectrum content without compression artifacts. The IP 55-rated enclosure provides protection against dust and moisture, allowing reliable operation in varied studio and mobile recording environments.

Key Features

• Self-contained 2-way powered column loudspeaker with integrated amplification
• Ten 6.5" woofers and two 1" compression drivers
• Maximum output: 106 dB SPL at 30 meters (100 feet)
• Horizontal dispersion: 100°
• Array length: 1.7 meters (5' 7")
• Weight: 56 kg (123 lbs)
• IP 55 environmental protection rating
• Wide-bandwidth beam-shaping acoustic design
• Dedicated amplification per driver set
• Coaxial driver mounting for phase coherence

The HP-DS170 delivers transparent monitoring and reinforcement with minimal setup overhead, making it valuable for studio tracking sessions, live recording applications, and session work demanding consistent, phase-coherent output throughout the production day.
