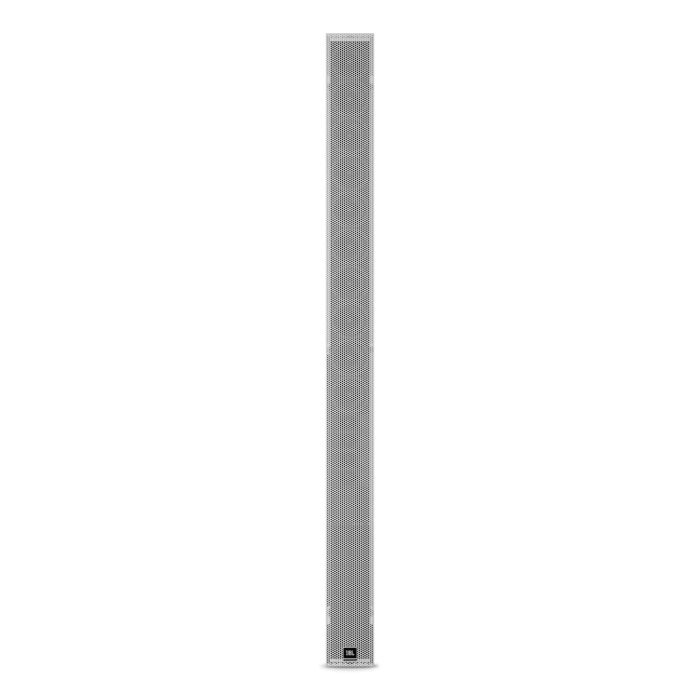

JBL DSX180D Bottom CC JBL DSX180-DN, Amp at Bottom, CC

JBL DSX180D Bottom CC JBL DSX180-DN with Amplifier

The JBL DSX180-DN is a compact, powered column speaker system engineered to deliver intelligible vocals and balanced background music in mid-sized studio monitoring and live-room applications. Its bottom-mounted amplifier configuration places all electronics below the loudspeaker array, creating a clean, lightweight column that integrates seamlessly into recording spaces or mounts to walls and stands without requiring separate external amplification gear.

Design & Build

The aluminum enclosure provides rigorous durability while maintaining a slim profile suited to permanent studio installations and production environments. The bottom-positioned integrated amplifier keeps signal chains clean and accessible, eliminating the need for separate outboard amplification units and simplifying rack layouts.

Sonic Characteristics & Coverage

Ten custom-designed 4-inch loudspeakers and four 1-inch horn-loaded dome tweeters deliver consistent midrange clarity and articulate high-frequency response across critical monitoring frequencies. The 130-degree fixed horizontal dispersion with adjustable vertical beam shaping allows precise acoustic tailoring to match room dimensions up to 25 meters, while the 32-bit floating-point DSP provides delay alignment, parametric EQ for room correction, automatic volume control, and eight user-definable presets for session-specific acoustic conditioning.

Key Features

• Ten custom-designed 4-inch loudspeakers
• Four 1-inch horn-loaded dome tweeters
• Eight-channel class-D amplifier with switched-mode power supply
• 32-bit floating-point DSP with delay and parametric EQ
• Automatic volume control (AVC)
• Eight user-definable presets
• 130-degree fixed horizontal dispersion with adjustable vertical beam shaping
• Coverage up to 25 meters
• Aluminum enclosure
• 6-pin audio connector, 5-pin RS-485 connector, and 3-pin IEC mains connector
• Integrated amplifier mounted at bottom of column
• Class-D amplification topology

The DSX180-DN integrates amplification, processing, and loudspeaker elements into a single column, delivering a complete monitoring solution for recording studios and production spaces requiring minimal external infrastructure, flexible mic placement, and fast acoustic adaptation between sessions.
