JBL DS115D Bottom CC JBL DS115-DN, Amp at Bottom, CC

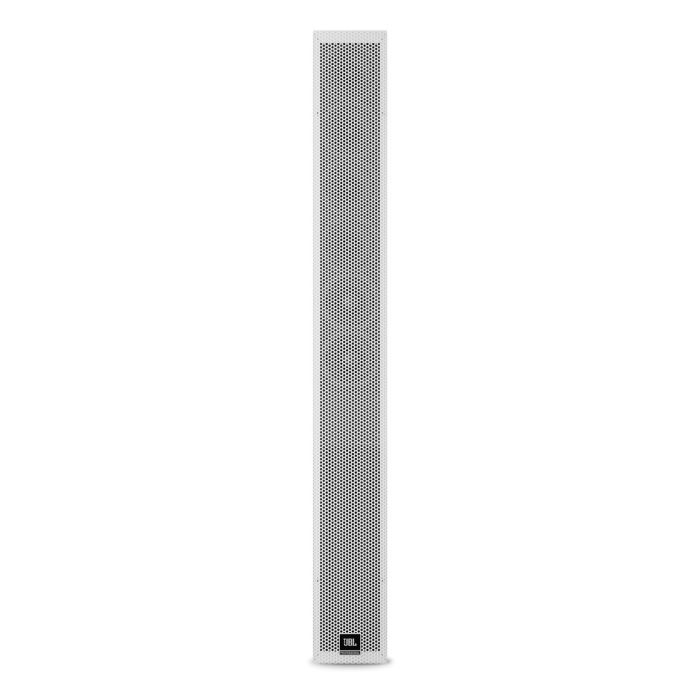

JBL Intellivox DS115D Dante-Enabled Line Array Speaker

The JBL DS115D is a compact, high-output line array speaker engineered for recording studios and production facilities where consistent monitoring coverage and networked control are essential. Its slim vertical profile and integrated amplification make it an excellent choice for tracking rooms, mastering suites, and control room installations requiring reliable audio clarity and balanced frequency distribution across the listening environment.

Audio Performance & Monitoring Characteristics

This speaker combines six custom-designed 4-inch drivers with two dome tweeters, all powered by an eight-channel class-D amplifier with switched-mode power supply. The result is clean, articulate output capable of handling multitrack material and program content with minimal distortion, while the Dante® and analog audio inputs ensure flexible integration into both networked DAW setups and traditional analog console workflows.

Studio Integration & Placement

The steel enclosure measures 1149 × 134 × 92 mm (45.2 × 5.3 × 3.6 inches) with a white RAL9010 finish and black speaker baffle, permitting discreet mounting in studio control rooms, live tracking spaces, and mixing environments. Its modest weight of 13 kg (28 lbs) simplifies rigging and repositioning during session setup, while the bottom-mounted amplifier configuration keeps the speaker profile unobstructed and cable routing straightforward.

Key Features

• Eight-channel class-D amplifier with switched-mode power supply
• Six custom 4-inch drivers and two dome tweeters
• Dante® networked audio input with IP control capability
• Analog audio inputs for legacy system compatibility
• Steel enclosure with RAL9010 white and RAL9011 black finish
• Dimensions: 1149 × 134 × 92 mm (45.2 × 5.3 × 3.6 inches)
• Net weight: 13 kg (28 lbs); shipping weight 16 kg (35 lbs)
• AC mains input 115V–230V, 3-pin IEC connector; 58 VA idle, 175 VA speech, 325 VA full load
• Operating temperature range: 0–40 °C (32–104 °F)
• Bottom-mounted amplifier for clean aesthetic integration

The DS115D delivers professional-grade monitoring clarity and audio control in a compact form factor, making it an excellent choice for productions where accurate reference and networked flexibility are equally important.
