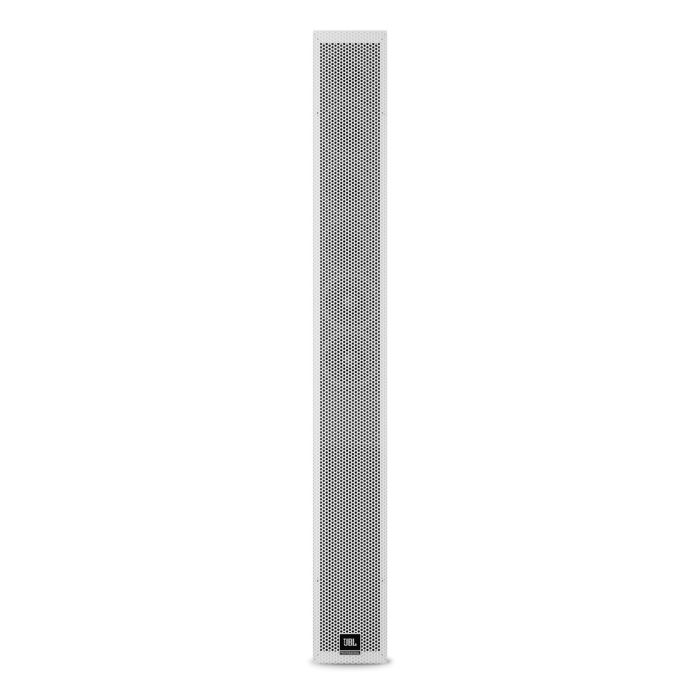

JBL DS115 Top CC JBL DS115-DN, Amp at Top, CC

JBL DS115 Top CC with Integrated Amplifier

The JBL DS115 is a compact, line-array column speaker designed for studio monitoring, post-production suites, and distributed recording environments. Its integrated amplifier and custom driver configuration deliver consistent, predictable coverage without requiring external processing or amplification, making it ideal for tracking rooms, isolation booths, and multiroom monitoring setups where self-contained signal flow simplifies session workflow.

Recording & Monitoring Performance

This system produces 320 W RMS of output across six custom 4" loudspeakers and two dome tweeters, delivering a frequency response from 130 Hz to 20 kHz with accurate coverage extending up to 15 meters. The 130-degree horizontal coverage with adjustable vertical beam control allows you to tailor acoustic balance and imaging across control rooms, recording spaces, and cue mixes without phase smearing or dead zones.

Studio Integration & Signal Path

The steel enclosure measures 1149 x 134 x 92mm and weighs 13 kg, presenting a slim profile that mounts unobtrusively above doorways, on walls, or in ceiling grids without consuming valuable studio real estate. The integrated 8-channel class-D amplifier with switched-mode power supply and onboard 32-bit floating-point DSP handling equalization, delay, automatic volume control, and beam steering eliminates external rack components and keeps your patch bay clean during sessions.

Key Features

• 320 W RMS output power
• Six custom 4" loudspeakers with two dome tweeters
• 8-channel class-D amplifier with switched-mode power supply
• Frequency response 130 Hz to 20 kHz
• 130-degree horizontal coverage with adjustable vertical beam control
• Coverage area up to 15 meters
• 32-bit floating-point DSP with EQ, delay, AVC, and vertical beam control
• Steel enclosure construction
• Compact dimensions: 1149 x 134 x 92mm (45.2 x 5.3 x 3.6 inches)
• Weight: 13 kg (28 lbs)
• Mains voltage 115V to 230V with 3-pin IEC connector
• Maximum inrush current: 25A at 230V

The DS115 combines integrated amplification, onboard DSP processing, and field-adjustable directivity into a single compact unit, streamlining gain staging and room tuning across multiroom recording and post-production environments.
