JBL Control 447LP 6.5 IN PREMIUM LP CEILING SPKR

JBL Control 447LP 6.5 IN PREMIUM LP CEILING SPEAKER

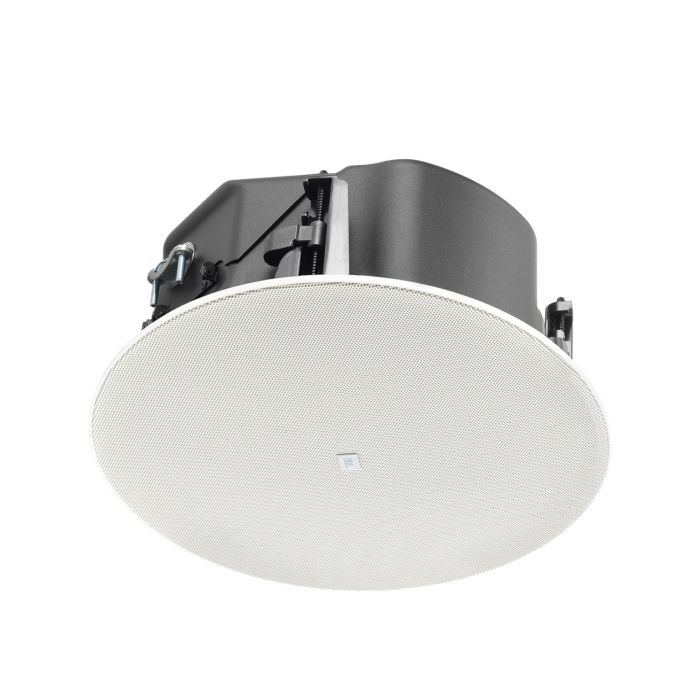

The JBL Control 447LP is a professional-grade coaxial ceiling loudspeaker engineered for seamless integration into studio monitoring and production environments. Its low-profile design sits flush with standard ceiling tile installations while delivering consistent, controlled coverage across the listening area. This is the speaker specification for tracking rooms, control rooms, and listening spaces demanding reliable performance and minimal visual footprint.

Design & Installation

The 316 mm (12.4 in) overall diameter accommodates standard ceiling grids with an 282 mm (11.1 in) cutout diameter, while the 142 mm (5.6 in) depth ensures compatibility with typical drop-ceiling cavities. The paintable magnetic grille ships in white standard finish, with black and square alternatives available, and includes zinc-plated C-ring and tile rails for secure mounting.

Studio Monitoring & Power Handling

The two-way coaxial design pairs a 165 mm (6.5 in) treated paper woofer with a 25 mm (1 in) soft-dome tweeter featuring a Neodymium magnet for extended high-frequency response and clear transient detail. The 60W 70/100V multitap transformer supports both constant-voltage and low-impedance operation, while the speaker handles 112 W continuous power (448 W peak) or 75 W continuous pink noise (300 W peak). Conical RBI™ (Radiation Boundary Integrator) technology ensures constant directivity coverage throughout the coverage pattern, critical for maintaining accurate mix translation across the listening plane.

Key Features

• Two-way coaxial ceiling loudspeaker with low-profile enclosure
• 165 mm (6.5 in) treated paper cone woofer with high-performance magnet
• 25 mm (1 in) soft-dome tweeter with Neodymium magnet
• Overall diameter 316 mm (12.4 in); cutout diameter 282 mm (11.1 in)
• Depth 142 mm (5.6 in) from ceiling tile surface
• 112 W (448 W peak) continuous power capacity; 75 W (300 W peak) pink noise
• 60W 70/100V multitap transformer for constant-voltage and low-impedance applications
• Conical RBI™ technology for constant directivity coverage
• Operating temperature range 0° C to 45° C
• IP33 rating per EN/IEC 60529
• UL 1480A and UL 2043 listed
• Paintable magnetic grille in white (black and square alternatives available)

Built to specification and backed by UL certifications, the Control 447LP delivers professional audio performance in studios and production facilities where acoustic accuracy and reliability are equally critical.
