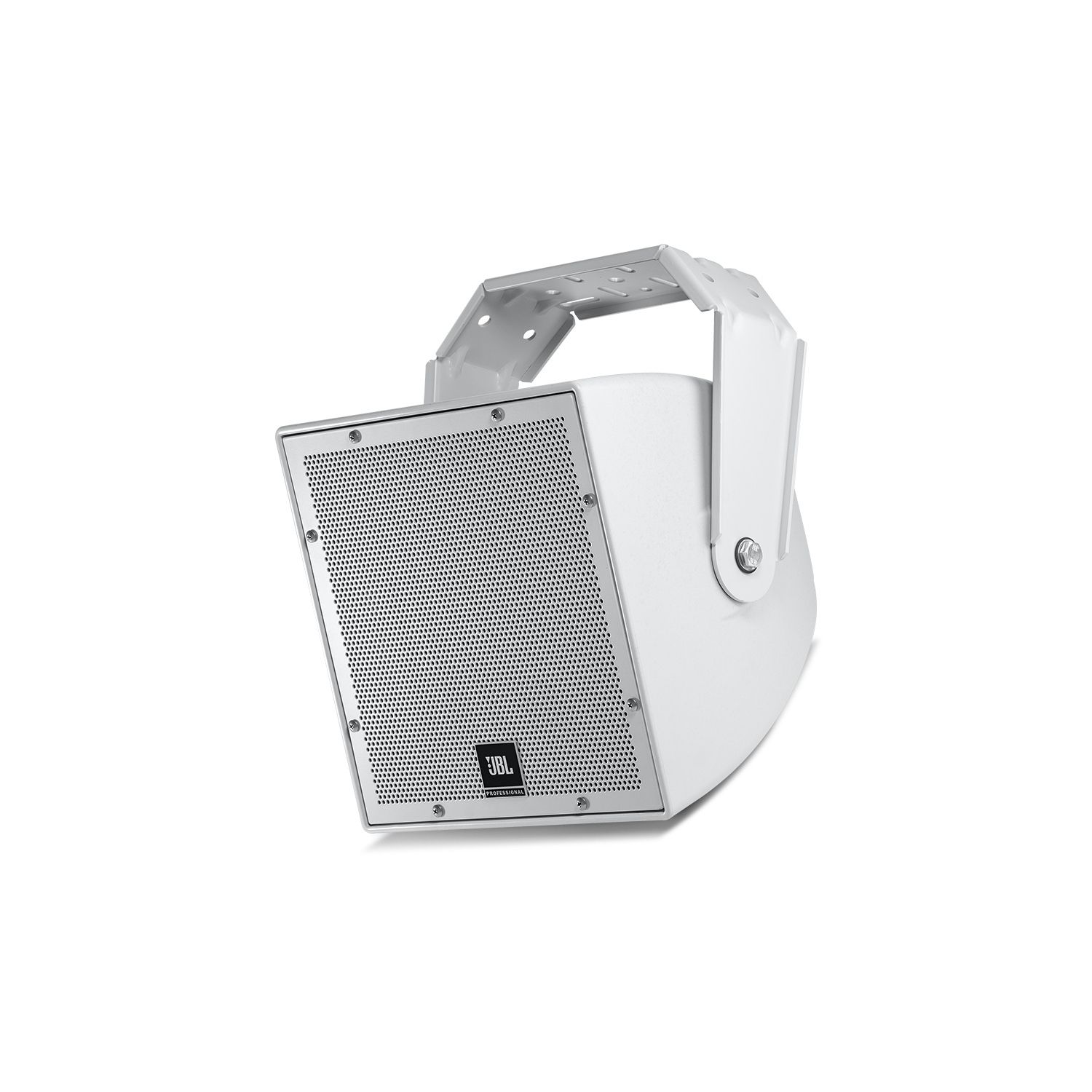

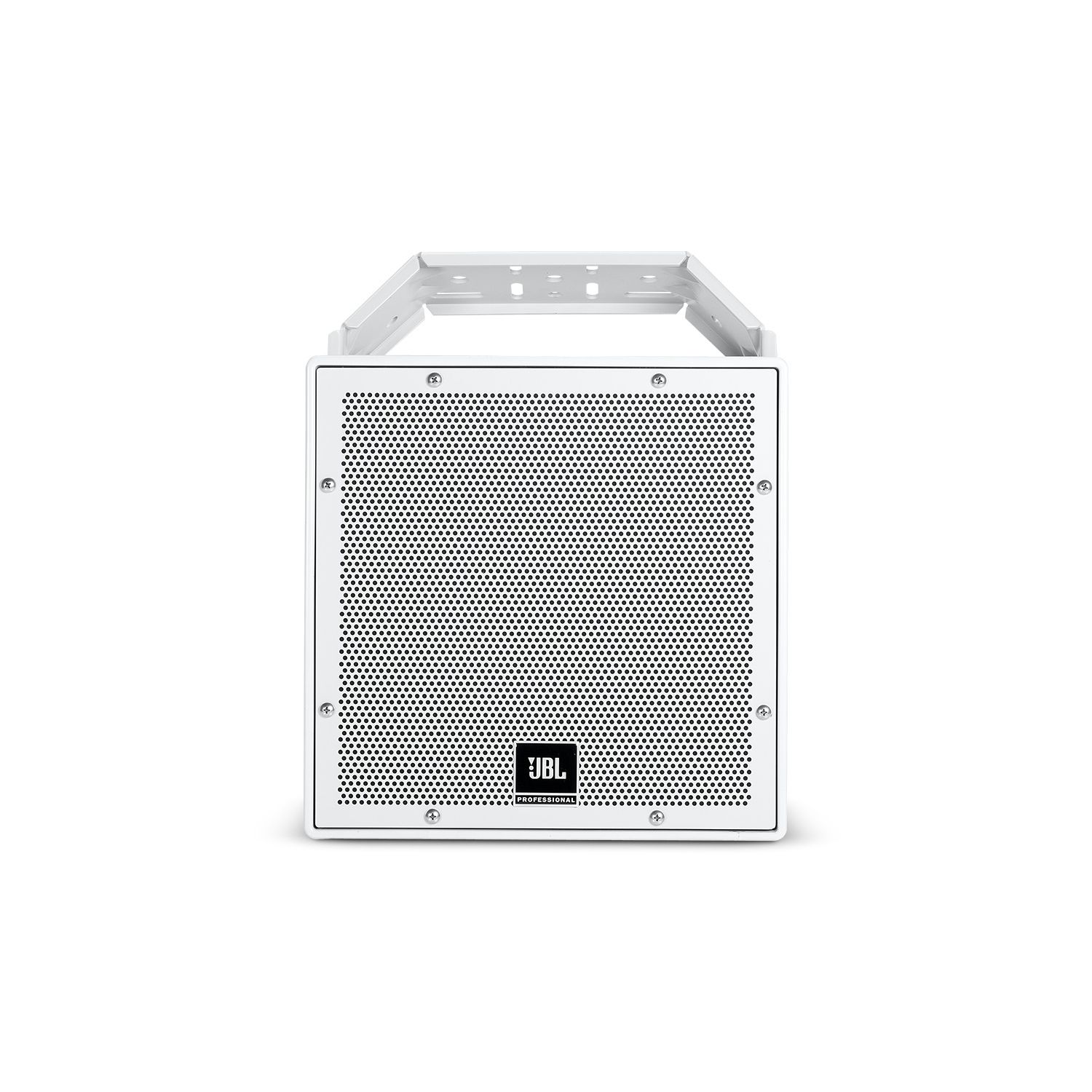

JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker with 8in LF

JBL AWC82 All-Weather Compact 2-Way Coaxial Loudspeaker

The AWC82 is engineered as a compact, sealed monitoring solution for studios requiring weatherproof capabilities or split location recording setups. Its coaxial design—pairing a 200 mm Kevlar-reinforced woofer with a 25 mm compression driver—produces a well-integrated 120° × 120° coverage pattern from a speaker that measures just 300 × 300 × 305 mm. Built to exceed military specifications for salt spray, humidity, UV, and temperature extremes, this loudspeaker maintains sonic integrity through sustained use without degradation.

Audio Performance & Coverage

The AWC82 achieves 94 dB sensitivity at 2.83V/1m across a 100 Hz–20 kHz (±3 dB) frequency response, with headroom extending to 80 Hz at –10 dB. A 1.8 kHz crossover (3rd order high-pass to HF, 2nd order low-pass to LF) ensures seamless integration between drivers. Maximum SPL reaches 118 dB direct (peaks to 124 dB), or 117 dB on the 200W tap, providing sufficient headroom for critical monitoring and multitrack recording work.

Build & Environmental Rating

All-weather construction includes a corrosion-resistant zinc-rich powder-coated steel grille with 3-layer assembly (foam and woven poly mesh backing), ABS enclosure with heavy bracing, and IP56 rating per IEC529. The speaker exceeds Mil Spec 810 and ASTM G85 salt-spray standards (168 hrs), ensuring sonic stability in controlled studio environments or challenging field-recording conditions. A gland-nut terminal cover forms a water-tight seal; the included U-bracket mounts securely via two M10 fine-thread points.

Key Features

• 200 mm (8 in) Kevlar-reinforced woofer with 50 mm (2 in) voice coil and weather treatment
• 25 mm (1 in) compression driver with high-temperature polymer diaphragm and patented fluid-cooling design
• Frequency response 100 Hz–20 kHz (±3 dB); range extends to 80 Hz (–10 dB)
• System sensitivity 94 dB (Ave. 100 Hz–20 kHz) at 2.83V @ 1 meter
• Maximum SPL: 118 dB direct 8Ω (peaks of 124 dB); 117 dB on 200W tap
• Long-term power rating 250W (2 hrs) / 200W (100 hrs)
• 8 ohm nominal impedance with CE-compliant barrier strip terminals accepting #6–#10 lugs or bare wire up to 2.5 mm² (12 AWG)
• IP56 environmental rating; exceeds Mil Spec 810 and ASTM G85 salt-spray testing (168 hrs)
• Corrosion-resistant zinc-rich powder-coated steel grille with 3-layer foam and woven poly mesh assembly
• Coaxial design with 120° × 120° coverage pattern; 1.8 kHz crossover (3rd order high-pass, 2nd order low-pass)
• Compact form factor: 300 × 300 × 305 mm (11.8 × 11.8 × 12.0 in) cabinet; 9.8 kg (21.5 lb) net weight
• Included U-bracket with M10 mounting points; secondary M6 safety attachment on back panel

The AWC82 combines rugged environmental protection with transparent coaxial performance, delivering reliable reference-quality output for studios and recording workflows that demand sealed durability.
