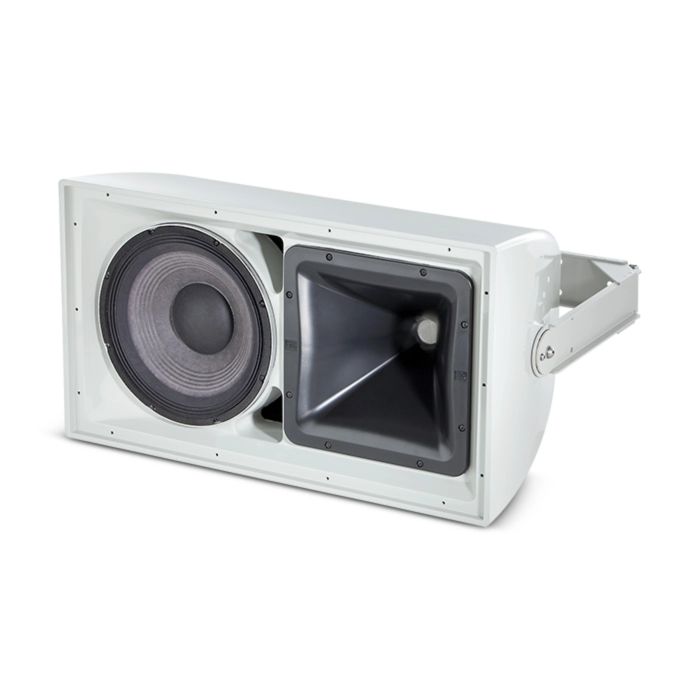

JBL AW266-LS 12" HI-PWR ALL-WEATHER SPK W EN54-24, 60x60, GREY

JBL AW266-LS 12" Hi-Power All-Weather Speaker with EN54-24 Compliance, 60×60°, Grey

The AW266-LS is a robust full-range outdoor speaker engineered for high-output applications in demanding environments. Its compact 12-inch format delivers controlled directivity and intelligible coverage without excessive weight, making it suitable for permanent installations, temporary event setups, and emergency notification systems that demand reliability and weather resistance across production scenarios.

Acoustic Design & Coverage

A dual-magnet 300mm low-frequency driver paired with a 38mm compression driver provides clear, wide-dispersion sound across a 60×60° coverage pattern with frequency response of 102Hz–18kHz. This combination ensures even distribution and intelligibility across medium-sized outdoor areas, allowing engineers to minimize speaker density while maintaining consistent mix translation outdoors.

Build Quality & Environmental Durability

The heavily braced multilayer glass composite enclosure resists UV degradation and moisture ingress, while the 16-gauge stainless steel grille backed with open-cell foam and stainless steel mesh protects drivers from impact and debris. IP55C weather rating and corrosion-resistant zinc-plated hardware ensure long-term performance in coastal, humid, and high-salt environments, eliminating tonal drift from weather exposure during extended outdoor recording or broadcast sessions.

Key Features

• 2262H 300mm (12") dual voice coil, dual magnetic gap low-frequency driver
• 2432H high-frequency compression driver with 38mm exit and 75mm voice coil
• 60×60° horizontal and vertical coverage pattern
• Frequency response: 102Hz–18kHz
• 8-ohm impedance with 400W transformer for 70/100V applications
• EN54-24 compliant for emergency warning systems
• IP55C rated weather and dust protection
• Multilayer glass composite, heavily braced enclosure
• Stainless steel grille with open-cell foam backing
• Vertical or horizontal mounting orientation flexibility
• Corrosion-resistant extra-thick zinc-plated polyester powder-coated U-type mounting bracket included
• Grey finish

The AW266-LS combines high output capability with installation flexibility and genuine all-weather durability, making it an effective choice for outdoor recording venues, live broadcast systems, and fixed monitoring installations where consistent acoustic performance is essential.
