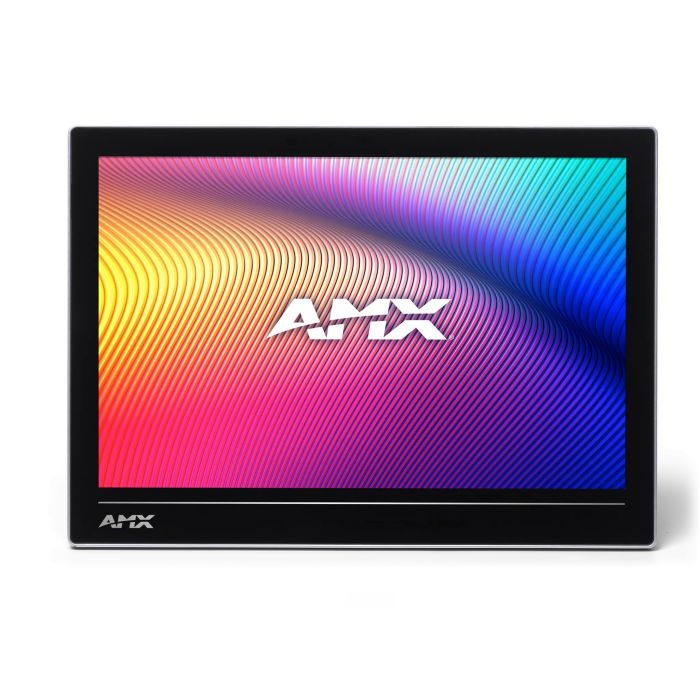

AMX VARIA-100N AMX Varia, 10.1” Touch Panel (No-Comm)

AMX VARIA-100N 10.1" Touch Panel (No-Comm)

The AMX VARIA-100N is a professional-grade control interface purpose-built for production environments where camera, NFC, and microphone functionality must be excluded. Its compact 10.1-inch format delivers responsive capacitive touch control in a slim profile that mounts cleanly to walls, glass surfaces, or standard VESA brackets. This is industrial-grade hardware engineered for studio and facility integration work that demands reliability without surveillance-capable components.

Display & Touch Interface

The 1920 × 1200 TFT IPS display renders sharp graphics across the 10.1-inch screen with 350 nits brightness and 800:1 contrast for legible operation in any studio lighting setup. Capacitive five-point touch sensing with palm rejection and wet-finger capability ensures responsive input during recording sessions and live control scenarios, while the 13/16-inch depth and 1.25 lb weight keep the panel unobtrusive on any mounting surface.

Power & Network Architecture

The panel draws power and data over a single RJ-45 Ethernet connection via PoE 802.3af at 15.4 watts, eliminating the need for separate power runs during studio installations. Built-in support for HTTPS, 802.1X, TLS 1.3, and Modern Authentication or OAuth 2.0 meets enterprise security standards without compromise.

Key Features

• 10.1-inch TFT IPS touchscreen display
• 1920 × 1200 resolution
• 350 nits brightness with 800:1 contrast ratio
• Capacitive five-point multi-touch with palm rejection and wet-finger support
• No integrated camera, NFC, or microphone for security compliance
• Power over Ethernet (PoE) 802.3af, 15.4 watts
• RJ-45 Ethernet connectivity
• Wall-mount, glass-mount, and VESA-mount compatible
• 6 7/8" H × 9 9/16" W × 13/16" D footprint
• 1.25 lb weight
• HTTPS, 802.1X, TLS 1.3, and Modern Authentication/OAuth 2.0 support
• Black finish

The VARIA-100N delivers enterprise-class network integration and security-first design for professional production control environments that cannot tolerate compromise on either performance or compliance.
