AMX DGX800/1600-ASB Audio Switching Board Kit For Enova DGX 800/1600

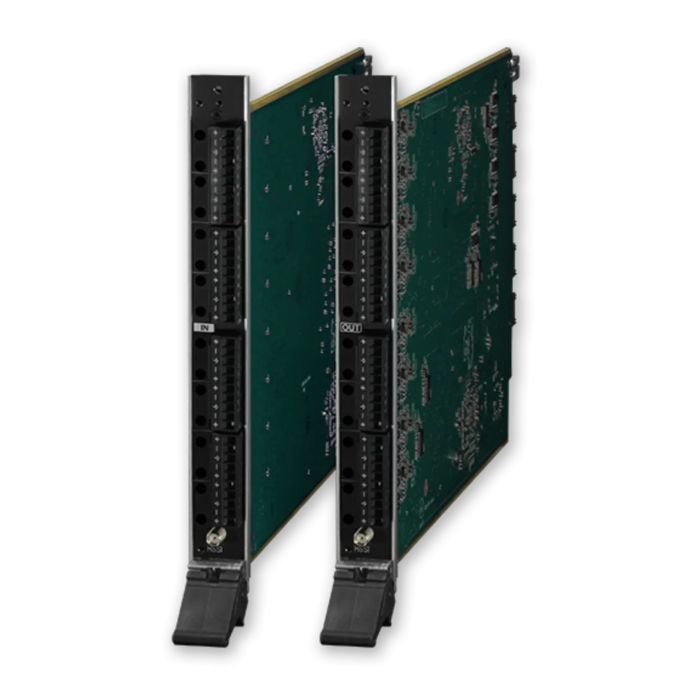

This pair of audio switching boards integrates seamlessly into Enova DGX 800 and DGX 1600 systems, providing robust matrix routing and professional-grade signal management for studio and live recording environments. The boards ship as a matched pair and must be installed together to function, enabling recording engineers and producers to expand audio I/O capabilities and add real-time processing depth to tracking and mixing sessions.

Routing & Signal Architecture

The DGX800/1600-ASB delivers a 16x16 audio switching matrix for the DGX 800 or 24x24 matrix for the DGX 1600, allowing flexible source-to-destination routing across all connected audio paths. This matrix-based approach eliminates single-path bottlenecks and enables complex multi-channel audio distribution for overdubbing, monitoring, and submix workflows without requiring external processors.

Audio I/O & DSP Processing

The kit includes four 3.5 mm 10-position captive-wire terminals supporting balanced or unbalanced stereo audio, plus 8 or 16 embedded digital audio inputs from video input positions (2-channel PCM), and 8 auxiliary analog inputs and outputs per board. Every audio output gains independent 10-band parametric EQ, adjustable volume, and sync delay controls for shaping tone during recording and mixing, alongside audio breakaway and downmixing capabilities and an integrated test tone generator for verifying signal integrity across sessions.

Key Features

Pair of audio switching boards (Input and Output) sold together
Model number FG1061-716
16x16 audio switching matrix for DGX 800; 24x24 matrix for DGX 1600
Four 3.5 mm 10-position captive-wire terminals supporting balanced or unbalanced stereo audio
8 or 16 embedded digital audio inputs from video input positions (2-channel PCM)
8 auxiliary analog audio inputs on input board (inputs 9–16 for DGX 800; 17–24 for DGX 1600)
8 auxiliary analog audio outputs on output board (outputs 9–16 for DGX 800; 17–24 for DGX 1600)
10-band parametric EQ on every audio output
Independent volume, EQ, and sync delay on each audio output
Audio breakaway and downmixing capabilities
Built-in test tone generator for audio connection testing

The DGX800/1600-ASB transforms baseline Enova systems into fully-featured audio distribution platforms with professional DSP tools and flexible I/O architecture for recording, mixing, and session management.
