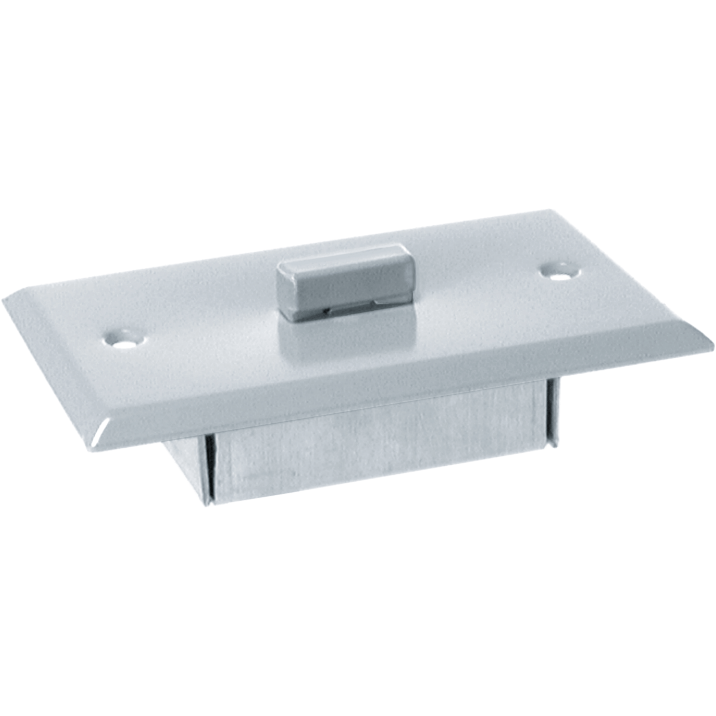

AKG PZM11 LL Professional Flush Mount Boundary Layer Microphone
Description
AKG PZM11 LL Professional Flush Mount Boundary Layer Microphone
The PZM11 LL is a compact boundary layer microphone engineered to mount flush against surfaces, making it ideal for capturing room tone, ambient textures, and overhead perspectives in studio and field recording sessions. Its low-profile construction and direct screw-terminal connectivity integrate cleanly into patch bays and permanent studio installations, while intelligent frequency shaping removes low-end rumble without muddying vocal and instrument clarity in the critical midrange.
Design & Build
Measuring just 115 mm long by 70 mm wide and 29 mm tall, this microphone sits seamlessly on any surface with its neutral off-white finish and minimal footprint. At only 71 grams, it places no load on mounting hardware while rear-plate screw terminals allow direct wiring into your console or interface without external connectors cluttering your signal path.
Audio Performance
The PZM11 LL captures clean audio with a 68 dB-A signal-to-noise ratio and a 26 dB-A equivalent noise floor, delivering pristine recordings even in rooms with moderate ambient activity. Its 80–20,000 Hz frequency response includes a tailored low-end rolloff to eliminate HVAC and room noise, paired with a presence peak in the high mids that brings definition and articulation to dialogue, acoustic instruments, and room reflections.
Key Features
- Flush-mount boundary layer design for minimal visibility
- Frequency response: 80–20,000 Hz
- Sensitivity: 5 mV/Pa
- Signal-to-noise ratio: 68 dB-A
- Equivalent noise level: 26 dB-A
- Powered by 12–48V phantom power
- Screw-terminal rear-plate electronics; no external connectors required
- Low-frequency rolloff reduces HVAC and environmental rumble
- Subtle high-frequency boost for enhanced clarity
- Compact dimensions: 115 × 70 × 29 mm
- Lightweight at 71 grams
- Off-white finish
- Mic-level output
The PZM11 LL shines in studio and location recording where surface-mounted audio capture must remain unobtrusive while delivering consistent, neutral-to-bright performance that sits well in dense mixes.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The AKG PZM11 LL is a professional boundary-layer microphone that captures clean, speech-optimized audio when mounted flush to tables, desks, and surfaces in recording or interview sessions. Its 80–20,000 Hz response with HVAC rolloff and presence lift keeps dialogue crisp without handling noise or surface rumble, while the screw-terminal rear-plate design simplifies studio and remote-recording installations. Pick this when you need discreet, reliable vocal and dialogue capture in rooms where a traditional mic stand isn't practical.
Frequently Asked Questions
What does 'boundary layer' mean and why does it matter?
Boundary layer design means the microphone sits flush against a surface (table, wall, podium) rather than hanging in free space, which controls reflections and phase issues that normally muddy capture. This approach is industry standard for conference tables, installed venues, and any application where the mic must be part of the furniture rather than a visible element.
Does this mic require phantom power, and what do I need to connect it?
Yes, it runs on 12–48V phantom power supplied from your mixer or interface. It uses screw-terminal rear-plate connectors instead of standard XLR or 3.5 mm jacks, so you'll need to wire it directly into a terminal block or pre-wired installation—no external connectors to fumble with.
Will the low-frequency rolloff cut out bass in my vocal or speech recording?
The rolloff specifically targets HVAC hum and air-conditioning noise below the speech fundamental range; it won't hollow out normal vocal tone. A subtle high-frequency boost actually enhances clarity and presence in dialogue, so speech stays bright and intelligible.
How small is this microphone, and will it mount easily on my table or podium?
At 115 × 70 × 29 mm and only 71 grams, it's compact enough to sit discretely on any surface. Screw-terminal mounting means you integrate it directly into your installation without visible stand hardware—perfect for applications where the microphone should blend into the environment.
What kind of noise performance does this deliver in a moderately noisy room?
It achieves a 68 dB-A signal-to-noise ratio with a 26 dB-A equivalent noise floor, so it captures clean dialogue and speech even in rooms with moderate ambient noise. The built-in low-frequency rolloff helps further by eliminating rumble that would otherwise degrade clarity.
