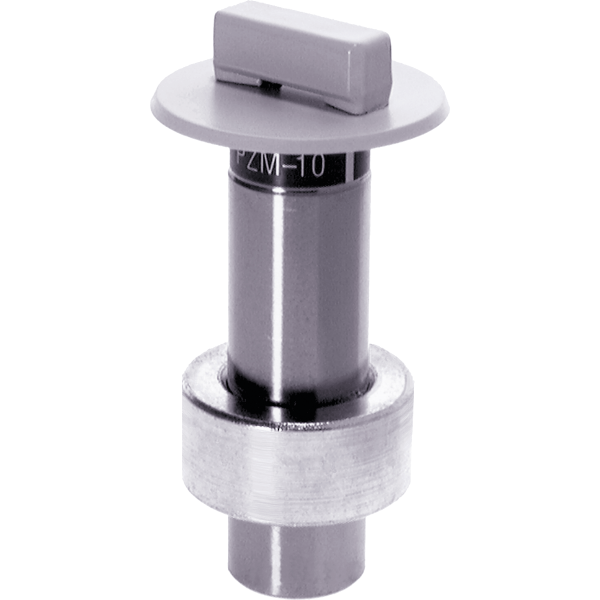

AKG PZM10 Professional Flush Mount Boundary Layer Microphone
Description
AKG PZM10 Professional Flush Mount Boundary Layer Microphone
The PZM10 is a compact condenser microphone engineered for studio applications where space constraints and versatile placement are essential. Its low-profile cylindrical housing mounts flush against tables, baffles, walls, or ceilings, delivering consistent audio pickup without acoustic interference or visual obstruction. Built on proven Pressure Zone Microphone technology, this unit captures clear, articulate source material across a wide frequency range with minimal self-noise—ideal for room ambience, drum overheads, piano lids, or isolation booth recording.
Design & Studio Mounting
The 3/4" tubular housing measuring just 72 mm tall and 39 mm in diameter enables discrete placement in confined recording spaces and unconventional mic positions. Its hemispherical polar pattern ensures even sensitivity in all directions around the microphone, eliminating acoustic dead zones common to cardioid designs—critical for capturing natural room tone, ambience bleed, and multi-directional source material without phase cancellation or proximity coloration.
Audio Performance & Connectivity
Delivering a frequency response of 80 Hz to 20,000 Hz with 2.5 mV/Pa sensitivity and a 68 dB S/N ratio at 94 dB SPL, the PZM10 captures detailed source information and ambient space with a clean noise floor. The microphone operates on 12 to 48V phantom power via its XLR connector, integrating seamlessly with any standard mixing console or audio interface equipped with phantom power output.
Key Features
- Electret condenser transducer for high sensitivity and extended frequency response
- Hemispherical polar pattern for 360° consistent pickup around the microphone
- Frequency response: 80 Hz to 20,000 Hz
- Open circuit sensitivity: 2.5 mV/Pa (–52 dBV/Pa)
- Equivalent noise level: 26 dB SPL A-weighted
- S/N ratio: 68 dB at 94 dB SPL
- Maximum SPL: 120 dB (3% THD)
- Balanced 240-ohm impedance with 1000-ohm minimum load impedance
- Phantom power operation: 12 to 48V
- 3-pin XLR male connector
- Compact cylindrical design: 72 mm height, 39 mm diameter
- Net weight: 74 grams
The AKG PZM10 excels in studio recording scenarios where discreet placement, full-frequency capture, and room balance are priorities—delivering professional-grade results for ambient recording, drum tracking, acoustic instrument pickup, and spatial ambience capture.
More Information
| Condition | New |
|---|
Reviews
At a Glance
The PZM10 is a professional boundary-layer condenser microphone engineered for capturing clear, intelligible speech and room ambience in recording sessions, podcasts, and live-to-tape applications where you need unobtrusive, omnidirectional pickup. Its hemispherical polar pattern ensures even sensitivity around the microphone, eliminating acoustic dead zones and simplifying mic placement in tight tracking spaces or drum booths. Choose it when you need a workhorse condenser that integrates seamlessly via standard phantom power and delivers minimal self-noise (26 dB SPL) across a 80 Hz–20 kHz frequency range.
Frequently Asked Questions
What does 'flush-mount' mean, and where can I install this microphone?
The PZM10's compact cylindrical design (72 mm tall, 39 mm diameter) allows recessed or surface mounting directly against tables, walls, or ceilings without protruding visibly. This makes it ideal for conference tables, surveillance installations, or any application where microphone visibility needs to be minimized.
Will this microphone work with my existing mixer or audio interface?
Yes—the PZM10 connects via a standard 3-pin XLR male connector and operates on phantom power between 12 and 48V, compatible with any professional mixer or interface that supplies phantom power. It presents a balanced 240-ohm impedance and requires a minimum 1000-ohm load impedance on the input.
How does the hemispherical polar pattern differ from a cardioid microphone?
The hemispherical pattern captures sound evenly in all directions around the microphone (360°), eliminating acoustic dead zones where cardioid mics lose sensitivity. This is crucial for conference tables and mobile speakers where participants move or face different angles.
What are the noise and maximum SPL specifications?
The PZM10 has an equivalent noise level of 26 dB SPL and a signal-to-noise ratio of 68 dB at 94 dB SPL, ensuring clean speech capture with minimal self-noise. It handles a maximum SPL of 120 dB (3% THD), suitable for both quiet conferencing and moderate ambient sound.
Is this microphone suitable for live sound or touring venues?
The PZM10 is engineered primarily for fixed installations (boardrooms, surveillance, conferencing) rather than portable live-sound touring. For band performances and mobile venues, consider cardioid-pattern stage microphones designed for feedback rejection and off-axis isolation.
