for conference of any size

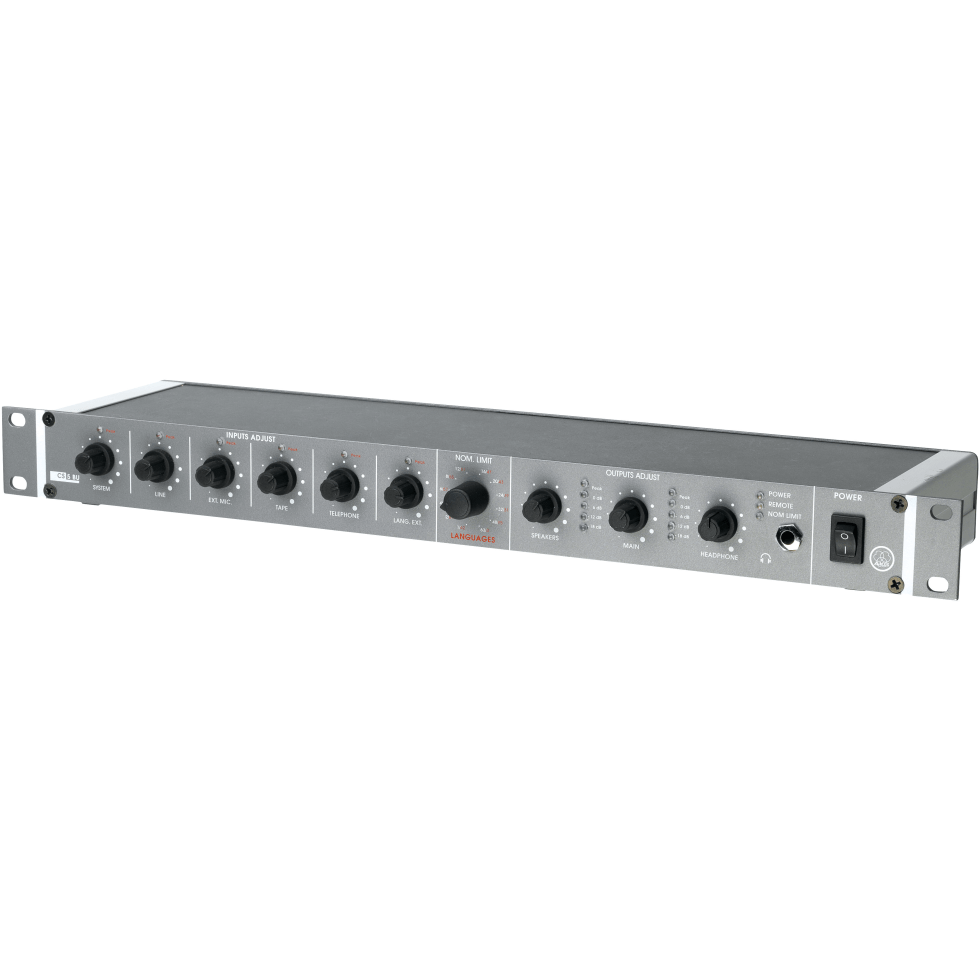

The CS5 BU is the base unit for the CS5 reference digital
conference system and integrates the central intelligence for
discussion,voting,interpretation and language distribution
functions in a sensationally compact 1HU,19" housing.
The CS5 BU provides all the necessary inputs and outputs
to manage a complex conference system. It controls up to
64 audio channels that can be assigned for discussion or for
interpretation purposes. All microphone and interpreter stations are
daisy-chained,using cost-efficient,standard CAT 5 cables,and
can be configured in a redundant closed-circuit digital audio bus.
No matter how many microphone stations the system includes,it
only needs a single CS5 BU to control the entire setup.
All-in-one digital controller
for systems of any size and complexity
Integrated infrared signal modulator
for wireless language distribution
Failsafe power supply concept
by using decentralized and redundant components
Stand-alone or computer-controlled operation
ensures easy,flexible and user-friendly handling
5 external inputs and 4 outputs
open for a wide range of external system extensions
