AKG C5 WL1 Professional Condenser Microphone Head

AKG C5 WL1 Professional Condenser Microphone Head

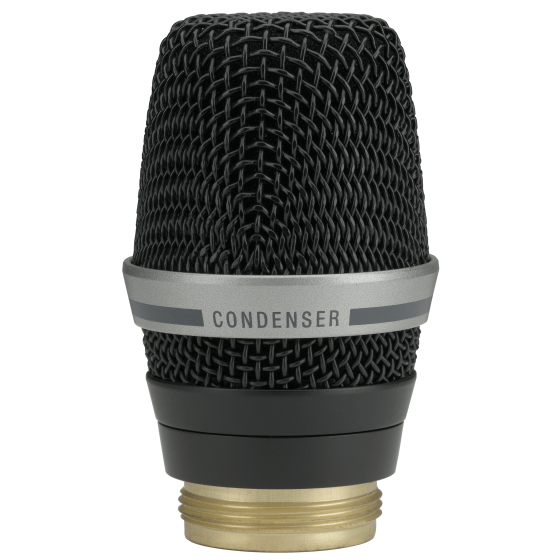

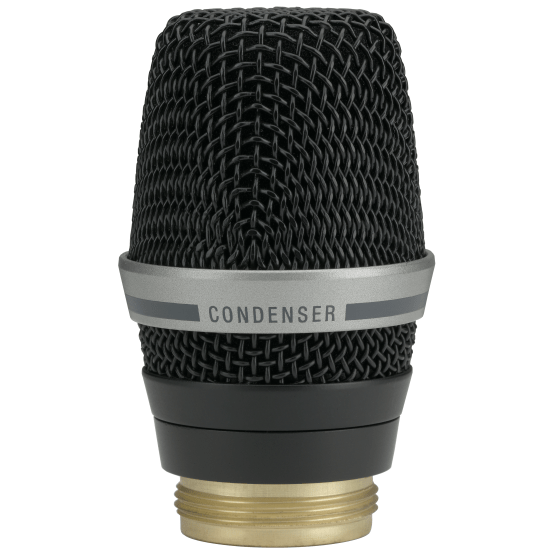

The AKG C5 WL1 is a compact condenser microphone head engineered for wireless vocal capture, delivering a balanced presence and clarity in a lightweight, ergonomic design. Built with a 24-carat gold-plated capsule and integrated shock absorption, this mic maintains professional audio quality while minimizing handling noise—essential for capturing clean vocal takes in the studio or on location. Compatible with major AKG wireless systems, the C5 WL1 bridges the gap between portability and sonic integrity.

Audio Performance & Specifications

The microphone exhibits a cardioid polar pattern with a frequency response of 65 to 20,000 Hz, capturing vocal detail across the full spectrum while rejecting off-axis signals and room reflections. Its sensitivity of 4 mV/Pa and maximum SPL ratings of 140 dB @ 1% THD and 145 dB @ 3% THD provide headroom for dynamic vocal performances, while the 25 dB-A equivalent noise level keeps self-noise minimal during quiet vocal passages and in post-production editing.

Design & Wireless Integration

The spring-steel wire-mesh grille and integrated shock absorber system protect the capsule from plosives and mechanical vibration without sacrificing transient response, crucial for capturing natural vocal articulation. Operating on standard 9 to 52 V phantom power with minimal current draw (3 mA typical), the C5 WL1 connects via balanced XLR output and fits directly onto HT4500 and DHT800 handheld transmitters, integrating seamlessly into DMS800 and WMS4500 wireless systems for studio sessions and mobile recording setups.

Key Features

• Condenser microphone with cardioid polar pattern
• 24-carat gold-plated capsule
• Frequency response: 65 to 20,000 Hz
• Sensitivity: 4 mV/Pa
• Maximum SPL: 140 dB @ 1% THD / 145 dB @ 3% THD
• Equivalent noise level: 25 dB-A to DIN 45412
• Balanced XLR (3-pin Male) audio output
• Phantom power requirement: 9 to 52 V to DIN 45596
• Integrated shock absorber system
• Spring-steel wire-mesh grille
• Compatible with HT4500 and DHT800 handheld transmitters
• Works with AKG DMS800 and WMS4500 wireless systems

The C5 WL1 combines professional-grade audio quality with practical wireless compatibility, making it a reliable choice for recording vocalists, tracking performances, and producing studio-quality wireless vocal sessions.
