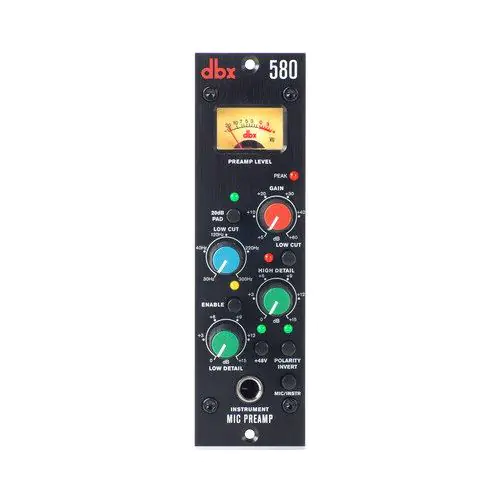

dbx 580 Mic Preamp - 500 Series
Overview
The dbx 580 Microphone Preamp is the perfect partner to your microphones, providing sonically-transparent gain that will reveal the detail and audio signature of even the most esoteric microphones. It will transform their low level output signal to a high level, high current output for direct connection to the line level inputs of your mixer, sampler or any other recording medium that accepts line level, analog input.
With its modular 500 Series design, the dbx 580 delivers up to 60dB of gain, features a variable-frequency Low-Cut Filter and unique Low and High Detail Equalization Controls, a 20dB Pad, Polarity Invert, +48V Phantom Power, a Front Panel Instrument Input, VU Metering and Peak Indicator.
Add warmth and definition to your microphones with the dbx 580 Microphone Preamp!
Features
- Premium low-noise Mic Pre with up to 60dB of gain
- Variable-Frequency Low-Cut Filter
- Low and High Detail Equalization
- 20dB Pad
- Polarity Invert
- +48V Phantom Power
- 1/4" Front Panel Instrument Input
- VU Meter
- Peak Indicator
Specifications
| Input Type | Electronically balanced/unbalanced, RF filtered |
| Input Impedance | 1.7k ω |
| Max Input Level | +15 dBu balanced or unbalanced (20dB PAD disabled) +35 dBu balanced or unbalanced (20dB PAD enabled) |
| Maximum Gain | 60dB |
| CMRR | >60 dB; typically >70 dB from 20 Hz – 20khz ω |
| Instrument Input Connector | Tip-Sleeve 1/4" Jack |
| Instrument Input Type | Unbalanced |
| Instrument Input Impedance | 500k ω |
| Max Instrument Input Level | +21 dBu unbalanced |
| Output Type | Electronically balanced/unbalanced, RF filtered |
| Output Impedance | 30 ω Ohms, unbalanced 15 ω Ohms |
| Max Output Level | +22dBu |
| EIN | Typically > -128.0 dBu, 150ω source impedance, 22khz ω bandwidth, unweigh |
| Frequency Response | 20Hz - 20kHz, +0/-1dB; |
| THD+Noise | |
| Power Requirements | +/- 16V DC |
| Power Current Draw | 80 mA per power rail |
| Power Draw | 2.56 watts |
| Rack System Compatibility | 500 Series Compatible Power-frame |
| Rack Space | 1 Slot |
| Dimensions (H x W x D) | 5.25" x 1.5" x 6" (13.34 cm x 3.81 cm x 15.24 cm) |
| Weight | 1.3 lbs (0.59k ω ) |
| Shipping Weight | 1.7 lbs (0.77kg) |
| Condition | New |
|---|---|
| Country of Manufacture | China |
