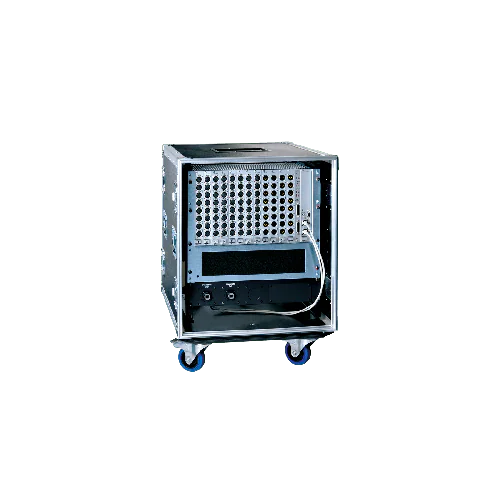

The 9U Vi Stagebox houses up to 64 mic/line inputs and 32 analogue line outputs and can be reconfigured as part-fitted or with alternative cards as required. In this configuration,there are 48 Mic/line inputs,16 analogue line outputs,4 blanks,and CAT5 connection to the desk.

Mic/line amp gain,48 V phantom power and 100 Hz lo-cut filter before the A-D converters can all be controlled remotely from the desk.

Optional AES/EBU,CobraNet®,Ethersound®,Aviom A-Net® 16,Blu Link or Dante cards are available,as well as transformer balanced options for the mic input cards.
