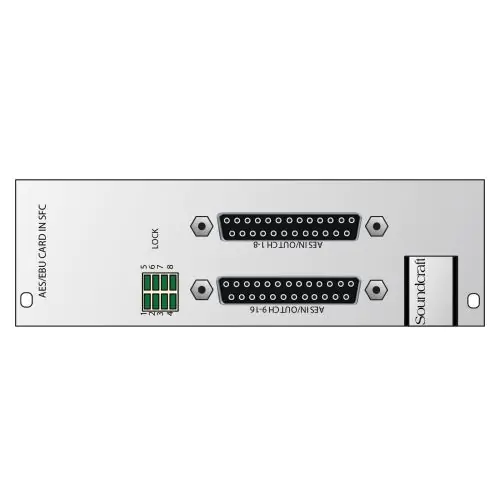

A 16 channel digital AES/EBU card for Soundcraft mixers.

AES/EBU input/output card with 16 Ch I/O. With input SFCs only .

Selectable output sampling frequencies:

96 kHz,48 kHz,44.1 kHz,or external reference (22...108 kHz). Input SFCs can be bypassed individually.

Output dither is selectable for every AES/EBU output from 24 bit,20 bit,18 bit or 16 bit. Settings are made with jumpers. Inputs and outputs on standard25-pin D-type connectors (female).

Note: Output SFCs are not fitted on the Vi4/6.

Specifications:

• Input/output impedance 110 O
• Input sensitivity min. 0.2 V
• Output level (into 110 O)  3.3 V
• SFC range 22...108 kHz
• Current consumption (3.3 V) 0.2 A/.0423: 0.4 A/.0424: 0.6 A / (5 V) 0.65 A
• Operating temperature 0...45° C
