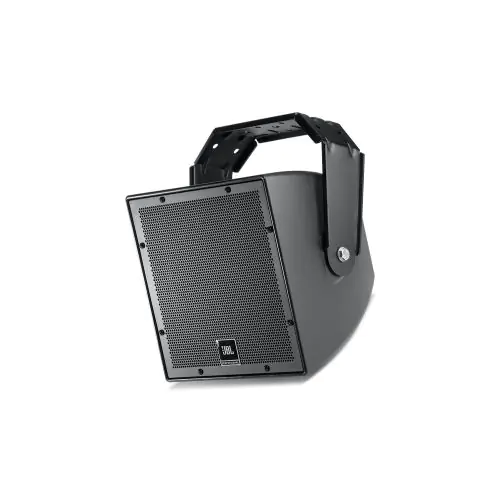

JBL AWC82 Compact 2-Way Coaxial Loudspeaker 8in LF Black sku number AWC82-BK

JBL AWC82 Compact 2-Way Coaxial Loudspeaker 8in LF Black

Highly weather-resistant IP56 rating Consistent 120° x 120° broadband pattern control Components: • 200 mm (8 in) woofer with Kevlar-reinforced cone and 50 mm (2 in) voice coil. • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm. Extraordinary clarity for speech, with extended frequency response for music. Advanced high-slope crossover network for constant coverage and smooth, natural midrange. 250 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability. High-power passive crossover network. Overload protection 80 Hz – 20 kHz frequency response. 200 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
$503.00
In stock
SKU AWC82-BK
SPECIFICATIONS
  • Frequency Range (-10 dB) 80 Hz – 20 kHz

  • Frequency Response (±3 dB) 100 Hz – 20 kHz

  • Coverage Pattern 120° x 120°

  • Directivity Factor (Q) 8.1 (1 k – 16 kHz)

  • Directivity Index (DI) 8.4 dB (1 k – 16 kHz)

  • Long-Term System Power Rating (IEC) 250 W 2 hrs. / 200 W 100 hrs

  • Sensitivity (2.83V @ 1m) 94 dB (Ave. 100 Hz – 20 kHz)

  • Maximum SPL Direct 8Ω: 118 dB (peaks of 124 dB) / 200 W Tap: 117 dB

  • Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF

  • Nominal Impedance 8 ohms

  • Transformer Taps 70V: 200W, 100W, 50W, 25W / 100V: 200W, 100W, 50W

  • Low Frequency Driver Kevlar-reinforced cone with weather treatment, 50 mm (2 in) voice coil.

  • High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.

  • HF Driver Protection Minimum audibility SonicGuard™ HF overload protection

  • Enclosure ABS with Glass enclosure, heavily braced

  • Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

  • Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.

  • Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")

  • Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).

  • Dimensions 300 x 300 x 305 mm (11.8 x 11.8 x 12.0), cabinet / 331 mm (13.0 in) including gland nut / 359 mm (14.2 in) including bracket extending to back

  • Colors Available in gray (similar to Pantone 420C) and black (-BK)

  • Net Weight 9.8 kg (21.5 lb), 11.6 kg (25.5 lb) with U-bracket

  • Shipping Weight 14.1 kg (31.0 lb)

  • Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.

    • More Information
    ConditionNew
    Country of ManufactureChina
    ★★★★★
    ★★★★★
