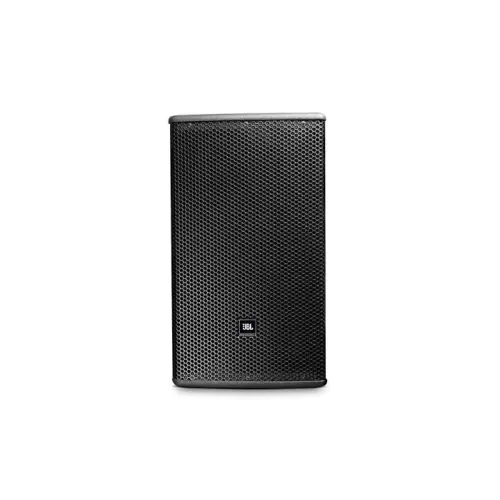

JBL AC195 Two-Way Full-Range Loudspeaker with 1 x 10 LF sku number AC195

JBL AC195 Two-Way Full-Range Loudspeaker with 1 x 10 LF

  • Compact enclosure
  • 258 mm (10 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility
    • $734.66
    In stock
    SKU AC195

    AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.

    The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

    AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications


    SPECIFICATIONS
    Frequency Range (-10 dB) &nbsp 68 Hz - 20 kHz
    Frequency Response (±3 dB) &nbsp 85 Hz - 18kHz
    System Sensitivity (1w @ 1m) &nbsp 95 dB
    Nominal Impedance &nbsp 8 ohms
    Maximum SPL(1m) &nbsp 118 dB (124 dB peak)
    Power Rating (Continuous/Program/Peak) &nbsp 200 W/400 W/800 W
    Coverage Pattern &nbsp 90° x 50° (H x V)
    Crossover &nbsp 1.8 kHz
    Low Frequency Driver &nbsp 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
    High Frequency Driver &nbsp 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
    Input Connector &nbsp Dual Neutrik NL4MP connectors plus covered barrier trip terminals
    Enclosure &nbsp 15 mm multi-ply hardwood plywood
    Grille &nbsp Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
    Finish &nbsp Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
    Suspension / Mounting &nbsp 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
    Dimensions (H x W x D) &nbsp 535 mm x 310 mm x 329 mm (21.0 in x 12.2 in x 12.9 in)
    Net Weight &nbsp 13.1 kg (28.8 lbs)
    More Information
    ConditionNew
    Country of ManufactureChina
    ★★★★★
    ★★★★★
