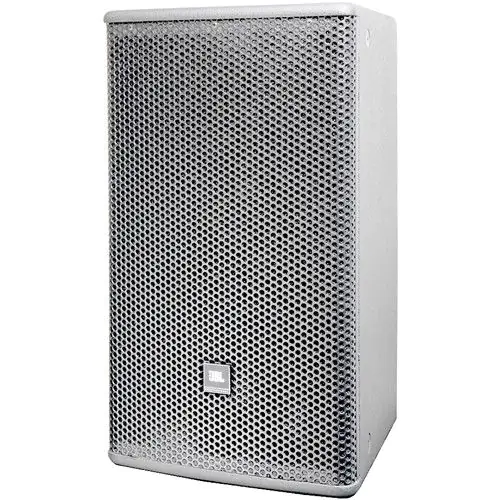

JBL AC195 Two-Way Full-Range Loudspeaker with 1 x 10 LF White sku number AC195-WH

JBL AC195 Two-Way Full-Range Loudspeaker with 1 x 10 LF White

Compact enclosure 258 mm (10 in) LF transducer 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver Dual Neutrik NL4 connectors plus screw terminals Multiple attachment points for ultimate flexibility
$734.66
In stock
SKU AC195-WH

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications.


Specifications
  • Frequency Range (-10 dB) 68 Hz - 20 kHz
  • Frequency Response (±3 dB) 85 Hz - 18kHz
  • System Sensitivity (1w @ 1m) 95 dB
  • Nominal Impedance 8 ohms
  • Maximum SPL(1m) 118 dB (124 dB peak)
  • Power Rating (Continuous/Program/Peak) 200 W/400 W/800 W
  • Coverage Pattern 90° x 50° (H x V)
  • Crossover 1.8 kHz
  • Low Frequency Driver 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver
  • with 66 mm (2.5 in) voice-coil
  • High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
  • Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure 15 mm multi-ply hardwood plywood
  • Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
  • Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions (H x W x D) 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
  • Net Weight 13.1 kg (28.8 lbs)
    • More Information
    ConditionNew
    Country of ManufactureChina
    ★★★★★
    ★★★★★
