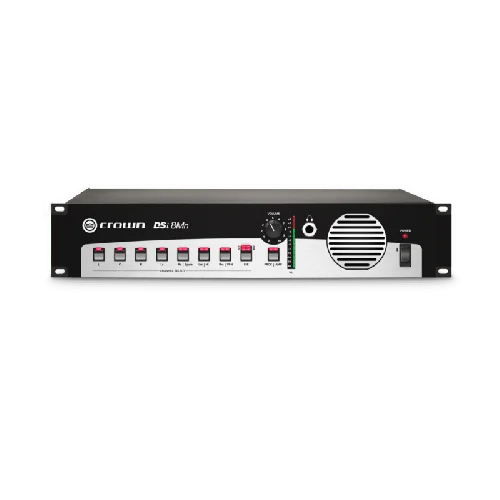

Crown Audio DSi 8Mn Projection Booth Monitor
Overview
Crown's DSi 8Mn is a projection booth monitor designed to work with digital cinema systems using the Crown DSi Series amplifiers. Created to meet remote-level and remote-audio monitoring requirements,the DSi 8Mn is an integral part of Crown's cinema solutions.
Features
Monitoring of processor or amplifier outputs
All inputs and outputs are balanced to interface with modern amplifiers
Levels for processor and power amp monitoring can be adjusted independently
Bar graph display can be calibrated to the cinema reference level so projectionists can see accurate auditorium levels
Phoenix and HD-15 connectors for inputs and outputs
Ethernet RJ45 connector allows remote viewing of bar graphs and live audio streaming to server rooms or NOC centers
Monitor bi-amp systems
Up to four subwoofers
Specifications
| Input Impedance (processor inputs) | 10 kilo-ohms |
| Input Impedance (amplifier inputs) | >50 kilo-ohms |
| Power Requirements | 100-240Vrms,50-60Hz,32W |
| Dimensions | 16.9" (42.9 cm) wide x 10.4" (26.3 cm) high x 3.4" (8.6 cm) deep |
| Weight | 9.6 lbs (4.4 kg) |
| Condition | New |
|---|---|
| Country of Manufacture | China |
