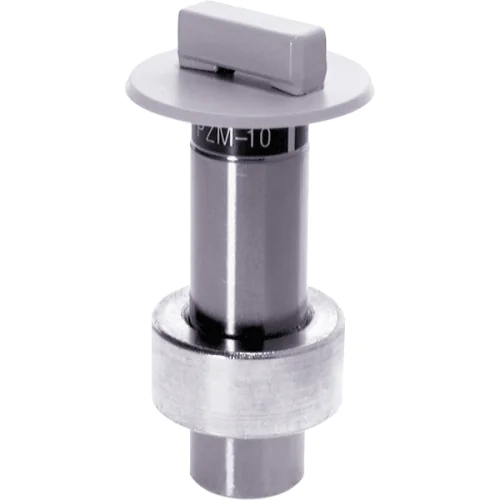

AKG PZM10 LL Professional Flush Mount Boundary Layer Microphone

AKG PZM10 LL Professional Flush Mount Boundary Layer Microphone
$255.00
In stock
SKU 3327H00010
Inconspicuous assistant for ticket-window,courtroom and security applications The PZM10 and PZM10 LL,part of the Pressure Zone Microphone® line,are designed for security,surveillance,and conference-table use. The special housing design allows the microphones to be mounted into tables,walls or ceilings easily and inconspicuously.

Using Pressure Zone Microphone® technology,the PZM10 and PZM10 LL are highly sensitive and deliver a wide and smooth frequency response. Thus,the PZM10 and PZM10 LL are characterized by excellent clarity and a consistent pickup anywhere around the mic.

Hemispherical polar pattern
for clear intelligible pickup of speech

Low-profile cylindrical design
perfect for wall or tabletop installation

Choice of mic level output or line-level output (PZM10 LL)
for optimized level matching

PZM10 powered by 12V - 48V phantom power XLR connector
connects to all standard mixers with phantom power out

PZM10 LL powered by 12V - 24V/DC unterminated wires
for the most flexible connectivity


Technical Specification
General
Audio Frequency bandwidth 80 to 20000 Hz
Sensitivity 2.5 mV/Pa
Equivalent Noise Level 26 dB-A
Signal to Noise 68 dB-A
Recommended Load Impedance 2000 Ohms
Powering Interface
Voltage 12 to 48 V
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Design
Finish off-white
Dimensions / Weight
Height 72 mm
Diameter 39 mm
Net Weight 74 g
More Information
ConditionNew
★★★★★
★★★★★
