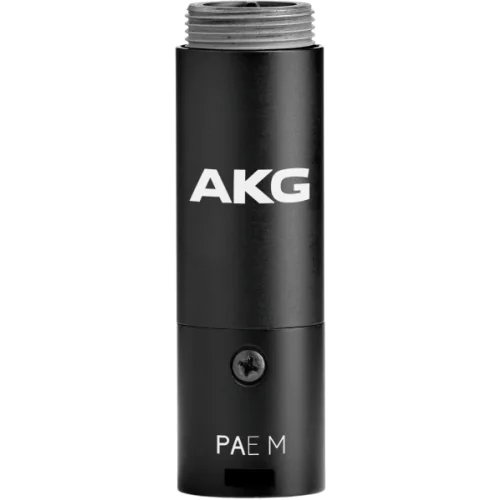

AKG PAE M Reference Phantom Power Module

AKG PAE M Reference Phantom Power Module
$89.99
In stock
SKU 3165H00150

Executive modularity for use in theatres,houses of worship and conference rooms The PAE M reference phantom power module for fixed and mobile installation provides a gold-plated three-pin XLR connector. With its wide voltage range the module will fit most available microphone mixers. The module also features a 250 Hz bass roll off for reduction of structure-borne noise.

The PAE M comes with an integrated system connector with gold- plated contacts. This unique connection securely fits all available gooseneck modules of the DAM+ Series as well as the HM1000 M hanging module.

Feeds all DAM+ Series capsules
for highest flexibility

RFi Shield technology
provides high immunity to radio-frequency interference

Accepts 9-52V input
for almost any available mixer inputs

Switchable bass roll off
for reduction of body noise and proximity effect

Highly reliable contacts to mounting modules
prevent contact problems and ensure extra-long life


Technical Specification
General
Audio Frequency bandwidth 20 to 20000 Hz
Bass Cut Filter 150 Hz
Recommended Load Impedance 2000 Ohms
Powering Interface
Voltage 9 to 52 V
Current 3.5 mA
Audio Output
Type Balanced XLR
Gender Male
Contacts 3-pin
Dimensions / Weight
Height 65.5 mm
Diameter 19.1 mm
Net Weight 43 g
More Information
ConditionNew
★★★★★
★★★★★
